TS4994EIJT - STMicroelectronics

Description: STMicroelectronics TS4994EIJT Audio Amplifier, Class-AB Mono 2MHz 90dB, 9-Pin Flip-Chip

Download TS4994EIJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

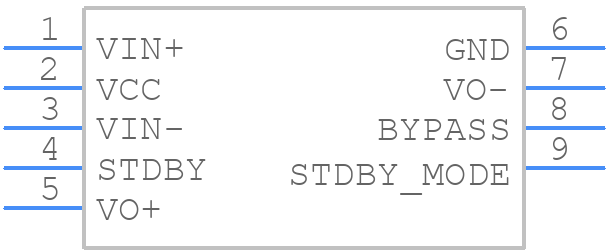

TS4994EIJT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS4994EIJT - STMicroelectronics PCB footprint - Other - Other - CSP P 0.5 mm
click to zoom
3D Models
TS4994EIJT - STMicroelectronics - 3D model - Other - CSP P 0.5 mm
click to zoom

TS4994EIJT Details

  • Manufacturer Part Number:

    TS4994EIJT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, FCP-9

  • Pin Count:

    9

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.63 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.63 mm

TS4994EIJT Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, such as thermal grease or thermal tape, to improve heat transfer between the device and the heat sink or PCB.
  • While the TS4994EIJT has internal ESD protection, it's not designed to withstand repeated or high-energy ESD events. External ESD protection devices may be necessary to ensure robustness in harsh environments. It's also important to follow proper handling and assembly procedures to prevent ESD damage during manufacturing.
  • Yes, the TS4994EIJT is suitable for high-reliability and automotive applications. STMicroelectronics provides a dedicated automotive-grade version, the TS4994EIJT-Q, which meets the AEC-Q100 standard. However, it's essential to consult with STMicroelectronics and follow their guidelines for using the device in these applications.
  • To troubleshoot POR-related issues, verify that the power supply voltage is within the recommended range and that the power-up sequence is correct. Also, check for any noise or glitches on the power supply lines, as these can affect the POR circuitry. If issues persist, consult the STMicroelectronics application notes and technical support resources for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS4994EIJT Overview

Use the download button to access the TS4994EIJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS499, or try a keyword search, such as Audio/Video Amplifiers
