TS4994IQT - STMicroelectronics

Description: 1W differential input/output audio power amplifier with selectable standby

Download TS4994IQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

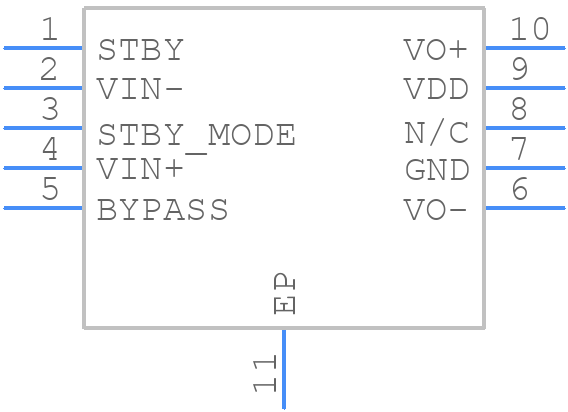

Symbol
TS4994IQT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS4994IQT - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10-ren1
click to zoom
3D Models
TS4994IQT - STMicroelectronics - 3D model - Small Outline No-lead - DFN10-ren1
click to zoom

TS4994IQT Details

  • Manufacturer Part Number:

    TS4994IQT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    3 X 3 MM, 0.50 MM PITCH, LEAD FREE, DFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TS4994IQT Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to reduce the device's temperature.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain its performance and lifespan.
  • To handle ESD protection for the TS4994IQT, follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, consider implementing ESD protection circuits or devices, such as TVS diodes or ESD protection arrays, in the system design.
  • Recommended test and measurement techniques for characterizing the TS4994IQT include using high-speed oscilloscopes, signal generators, and network analyzers to measure parameters such as frequency response, gain, and noise figure. It's also essential to follow proper measurement setup and calibration procedures to ensure accurate results.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS4994IQT Overview

Use the download button to access the TS4994IQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS499, or try a keyword search, such as Audio/Video Amplifiers
