TS4995EIJT - STMicroelectronics

Description: 1.2 W fully differential audio power amplifier with selectable standby and 6 dB fixed gain

Download TS4995EIJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

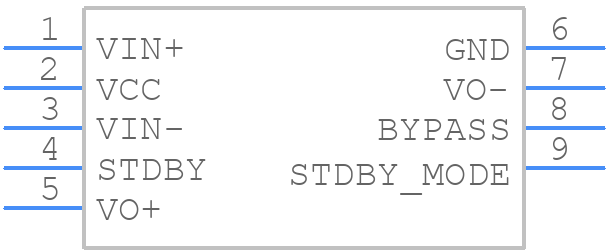

TS4995EIJT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS4995EIJT - STMicroelectronics PCB footprint - Other - Other - CSP P 0.5 mm
click to zoom
3D Models
TS4995EIJT - STMicroelectronics - 3D model - Other - CSP P 0.5 mm
click to zoom

TS4995EIJT Details

  • Manufacturer Part Number:

    TS4995EIJT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    LEAD FREE, FCP-9

  • Pin Count:

    9

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.63 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.63 mm

TS4995EIJT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating at least 1.5 times the input voltage. Additionally, consider the capacitor's ESR, ripple current, and temperature rating.
  • Although the datasheet doesn't specify a maximum voltage for the enable pin, it's recommended to keep it within the range of 0V to VCC (typically 5V or 3.3V) to ensure proper operation and prevent damage to the device.
  • The TS4995EIJT is rated for operation up to 150°C, but it's essential to consider the device's power dissipation, thermal resistance, and PCB design to ensure reliable operation in high-temperature environments. Consult the datasheet and application notes for guidance on thermal management.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check the PCB layout, component values, and soldering quality. Consult the datasheet, application notes, and STMicroelectronics' support resources for guidance on debugging and troubleshooting techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS4995EIJT Overview

Use the download button to access the TS4995EIJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS499, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
