TS512IDT - STMicroelectronics

Description: Precision Amplifiers Dual Prec Hi-Perform

Download TS512IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

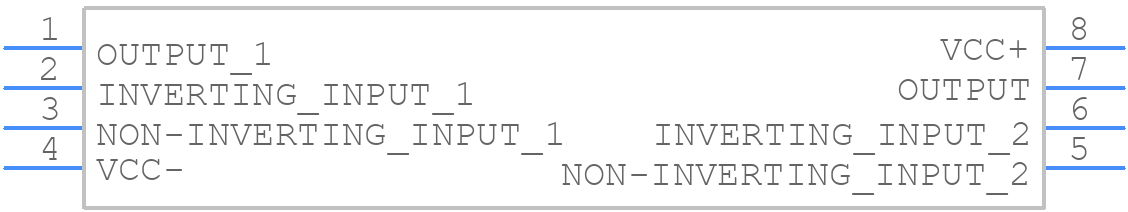

Symbol
TS512IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS512IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-08
click to zoom
3D Models
TS512IDT - STMicroelectronics - 3D model - Small Outline Packages - SO-08
click to zoom

TS512IDT Details

  • Manufacturer Part Number:

    TS512IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.15 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    8

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.8 V/us

  • Slew Rate-Nom:

    1.5 V/us

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    31620

  • Wideband:

    NO

  • Width:

    3.9 mm

TS512IDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS512IDT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The TS512IDT requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the analog power supply (VCC) is stable, and to power down the device before the analog power supply is turned off.
  • The recommended clock frequency for the TS512IDT is between 10 MHz to 100 MHz, with a clock signal quality of less than 100 ps of jitter. A high-quality clock signal is essential for optimal performance, and it's recommended to use a clock source with a low jitter and a stable frequency.
  • The TS512IDT has several configuration options, including gain settings, filter settings, and output mode settings. The optimal configuration depends on the specific application requirements, such as signal frequency, amplitude, and noise tolerance. It's recommended to consult the datasheet and application notes for guidance on configuring the device for optimal performance.
  • The TS512IDT has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. Thermal considerations include providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device. It's also recommended to follow the recommended operating conditions and derating guidelines to ensure reliable operation over temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS512IDT Overview

Use the download button to access the TS512IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS512, or try a keyword search, such as Operational Amplifiers
