A good PCB layout for the TS5A23157QDGSRQ1 involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The TS5A23157QDGSRQ1 requires a single 1.8V power supply. Ensure that the power supply is clean and stable, and that the device is powered up in the correct sequence. Power up the VCC pin first, followed by the VCCA pin. Power down the VCCA pin first, followed by the VCC pin.
The TS5A23157QDGSRQ1 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid blocking the airflow around the device, and ensure that the PCB is designed to dissipate heat efficiently.
The TS5A23157QDGSRQ1's JTAG interface can be used for boundary scan testing and debugging. Ensure that the JTAG pins are not connected to other signals, and use a JTAG interface adapter to connect to the device. Use a JTAG software tool to access the device's internal registers and perform testing and debugging.
The TS5A23157QDGSRQ1 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials and equipment, and ensure that the device is handled and stored in an ESD-safe environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5A23157QDGSRQ1 Overview

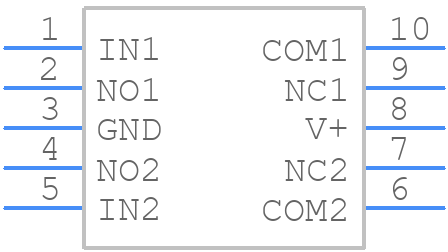

Use the download button to access the TS5A23157QDGSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5A2,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
