TS5A26542YZTR - Texas Instruments

Description: 0.75Ω, Dual SPDT Analog Switch with Input Logic Translation

Download TS5A26542YZTR Model

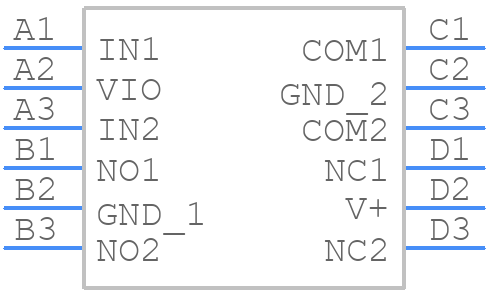

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TS5A26542YZTR - Texas Instruments PCB footprint - BGA - BGA - YZT (R-XBGA-N12)
click to zoom
3D Models
TS5A26542YZTR - Texas Instruments  - 3D model - BGA - YZT (R-XBGA-N12)
click to zoom

TS5A26542YZTR Details

  • Manufacturer Part Number:

    TS5A26542YZTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    2:1 SPDT

  • Analog IC - Other Type:

    SPDT

  • Bandwidth-Nom:

    43 MHz

  • Input Voltage-Max:

    5.5 V

  • JESD-30 Code:

    R-XBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.87 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    63 dB

  • On-state Resistance Match-Nom:

    0.15 Ω

  • On-state Resistance-Max (Ron):

    1.6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.0005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    20 ns

  • Switch-on Time-Max:

    35 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.37 mm

TS5A26542YZTR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal paths short, using a solid ground plane, and avoiding vias under the device. Additionally, ensure that the input and output pins are properly decoupled and that the power supply is well-filtered.
  • The TS5A26542YZTR has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal relief pattern on the PCB. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating in high-temperature environments.
  • While the datasheet specifies a maximum operating frequency of 100 MHz, the actual frequency limit may be lower depending on the specific application, signal integrity, and PCB layout. It's recommended to perform signal integrity simulations and testing to determine the maximum operating frequency for your specific design.
  • To ensure signal integrity, use controlled impedance traces, keep signal paths short, and use termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design. It's also essential to follow good PCB design practices, such as avoiding vias under the device and using a solid ground plane.
  • The TS5A26542YZTR requires a specific power sequencing to ensure proper operation. The VCC pin should be powered up before the VCCA pin, and the VCCA pin should be powered down before the VCC pin. It's essential to follow the recommended power sequencing in the datasheet to prevent damage to the device.
