Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal paths short, using a solid ground plane, and avoiding vias under the device. Additionally, ensure the input and output pins are properly decoupled and matched to minimize signal reflections.
The TS5A3153YZPR has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal relief pattern to dissipate heat. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if operating in high-temperature environments.
While the datasheet specifies a maximum operating frequency of 100 MHz, the actual frequency limit depends on the specific application, signal integrity, and PCB layout. In general, it's recommended to operate the device at frequencies below 50 MHz to ensure reliable performance.
The TS5A3153YZPR is rated for a maximum voltage of 5.5 V. While it can tolerate some voltage overshoot, it's not designed for high-voltage applications. If you need to operate at higher voltages, consider using a voltage regulator or a different device specifically designed for high-voltage applications.
To ensure signal integrity, use controlled impedance traces, minimize signal path lengths, and avoid using long, unshielded cables. Additionally, use proper termination techniques, such as series termination or parallel termination, to minimize signal reflections and ringing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5A3153YZPR Overview

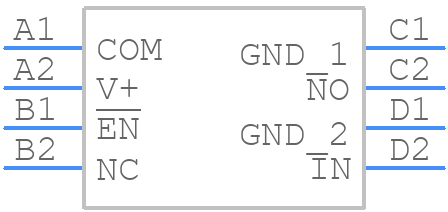

Use the download button to access the TS5A3153YZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5A3,
or try a keyword search, such as Multiplexers or Switches
