A good PCB layout for the TS5A3154YZPR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
The TS5A3154YZPR requires a single 1.8V to 5.5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low output voltage ripple to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
The TS5A3154YZPR can operate at data rates up to 400 Mbps. However, the actual data rate achievable depends on the system design, PCB layout, and signal quality. The device's bandwidth and signal attenuation can limit the maximum data rate, and it's recommended to use a signal integrity analysis tool to optimize the design.
To troubleshoot issues with the TS5A3154YZPR, start by verifying the power supply and signal connections. Check for signal integrity issues, such as signal attenuation, reflections, and crosstalk. Common pitfalls to avoid include incorrect pin connections, inadequate power supply decoupling, and insufficient signal termination.
The TS5A3154YZPR has a junction temperature range of -40°C to 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermal pad or heat sink, and avoid overheating the device. The device's thermal resistance (RθJA) is 45°C/W, and the maximum allowed junction temperature is 125°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5A3154YZPR Overview

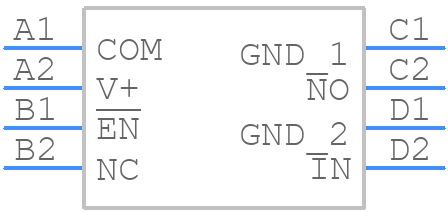

Use the download button to access the TS5A3154YZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5A3,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
