Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The TS5A6542YZPR has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal relief pattern on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
While the datasheet specifies a maximum operating frequency of 100 MHz, the actual frequency limit may be lower depending on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to determine the maximum operating frequency for your specific design.
To minimize jitter and ensure signal integrity, use a low-impedance transmission line, keep signal traces short and matched, and use a common-mode filter or termination resistors if necessary. Additionally, consider using a clock jitter cleaner or a phase-locked loop (PLL) to further reduce jitter.
Texas Instruments recommends using a 0.1 μF ceramic capacitor and a 10 μF tantalum capacitor in parallel, placed as close as possible to the device's power pins. This helps to filter out noise and ensure stable power supply operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5A6542YZPR Overview

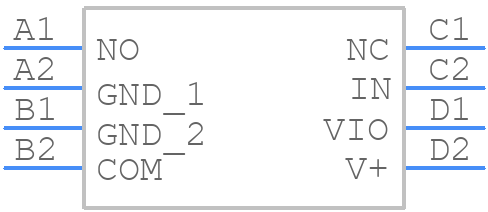

Use the download button to access the TS5A6542YZPR schematic symbol, PCB footprint, and 3D model.
