Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for signal routing, component placement, and thermal management to ensure optimal performance and minimize signal integrity issues.
The TS5USBC400YFPT supports USB-C Alt Mode, which requires specific configuration and programming. Refer to the device's programming guide and the USB-C specification to understand the required settings and registers to configure the device for Alt Mode operation.
The maximum cable length supported by the TS5USBC400YFPT depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 3 meters for USB 3.2 Gen 2 and 5 meters for USB 2.0. However, it's recommended to perform signal integrity analysis and testing to ensure reliable operation at longer cable lengths.
The TS5USBC400YFPT requires a 1.8V power supply, and it's recommended to use a low-dropout regulator (LDO) or a switching regulator to ensure a stable voltage supply. Additionally, the device has built-in power management features, such as automatic power-down and wake-up, to minimize power consumption during idle periods.
The TS5USBC400YFPT has a maximum junction temperature of 125°C, and it's essential to ensure proper thermal management to prevent overheating. This can be achieved through the use of thermal pads, heat sinks, and proper PCB design to dissipate heat effectively.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5USBC400YFPT Overview

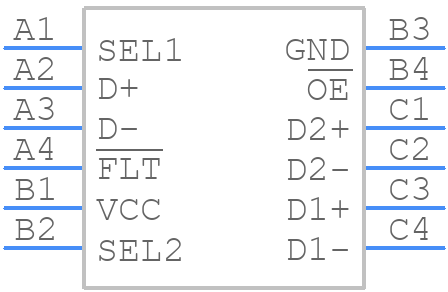

Use the download button to access the TS5USBC400YFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5US,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
