Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. Additionally, it's essential to ensure that the input voltage is stable and within the recommended operating range before enabling the device. It's also recommended to use a soft-start circuit to reduce inrush current during power-on.
The TS5V522CDBQR has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to derate the device's performance accordingly. It's also recommended to use thermal management techniques, such as heat sinks or thermal pads, to ensure the device operates within a safe temperature range.
To troubleshoot issues with the TS5V522CDBQR, it's recommended to follow a systematic approach, starting with verifying the power supply and input voltage. Check for any signs of physical damage, such as overheating or electrical overstress. Use oscilloscopes and logic analyzers to debug the device's behavior and identify any anomalies. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines and to contact Texas Instruments' technical support if necessary.
The TS5V522CDBQR is a commercial-grade device, and it's not intended for use in high-reliability or safety-critical applications. However, Texas Instruments offers a range of devices that are specifically designed for high-reliability and safety-critical applications, such as the TS5V522QDBQR, which is a automotive-grade device. It's essential to consult the datasheet and application notes to determine the device's suitability for a specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5V522CDBQR Overview

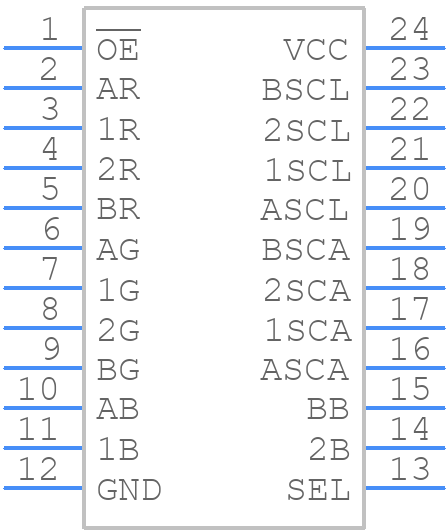

Use the download button to access the TS5V522CDBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5V5,
or try a keyword search, such as Multiplexers or Switches
