TS834-5ID - STMicroelectronics

Description: Micropower voltage supervisor reset active low or high with integrated timer

Download TS834-5ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

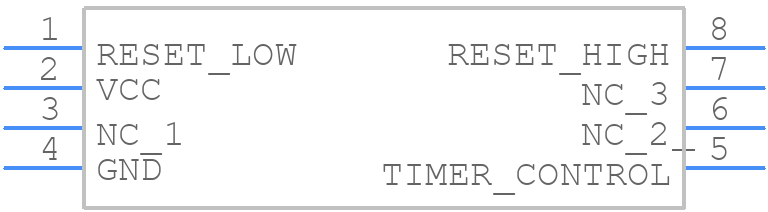

TS834-5ID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS834-5ID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
TS834-5ID - STMicroelectronics - 3D model - Small Outline Packages - SO8
click to zoom

TS834-5ID Details

  • Manufacturer Part Number:

    TS834-5ID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.012 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.33V

  • Width:

    3.9 mm

TS834-5ID Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or fans, to keep the device temperature within the recommended range.
  • STMicroelectronics recommends following the IEC 61000-4-2 standard for ESD protection. This includes using ESD protection devices, such as TVS diodes, on the input lines, and ensuring that the PCB design and layout minimize the risk of ESD damage.
  • Yes, the TS834-5ID can be used in switching regulator applications. However, it's essential to ensure that the device is operated within its recommended specifications, including the maximum switching frequency and output current. Additionally, consider using a suitable output capacitor and inductor to minimize voltage ripple and ensure stable operation.
  • To troubleshoot issues with the TS834-5ID, start by verifying the input voltage, output voltage, and output current are within the recommended specifications. Check the PCB layout and design for any potential issues, such as thermal bottlenecks or inadequate decoupling. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS834-5ID Overview

Use the download button to access the TS834-5ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS834, or try a keyword search, such as Power Management Circuits
