TSB572IYQ2T - STMicroelectronics

Description: Low-power consumption: 380 µA typ. • Wide supply voltage: 4 V - 36 V • Rail-to-rail input and output • Gain bandwidth product: 2.5 MHz • Low input bias current: 30 nA max. • No phase reversal • High tolerance to ESD: 4 kV HBM • Extended temperature range: -40 °C to 125 °C • Automotive grade • Small SMD packages • 40 V BiCMOS technology • Enhanced stability vs. capacitive load

Download TSB572IYQ2T Model

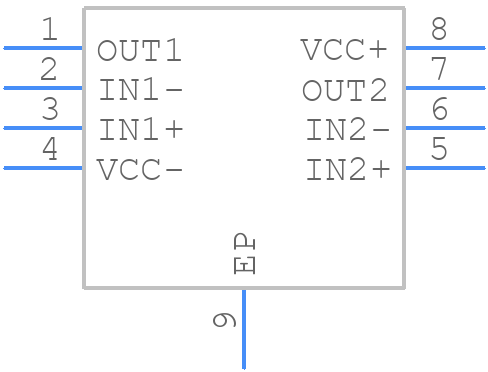

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TSB572IYQ2T - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 3 x 3
click to zoom
3D Models
TSB572IYQ2T - STMicroelectronics  - 3D model - Small Outline No-lead - DFN8 3 x 3
click to zoom

TSB572IYQ2T Details

  • Manufacturer Part Number:

    TSB572IYQ2T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.07 µA

  • Bias Current-Max (IIB) @25C:

    0.03 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    106 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.015 µA

  • Input Offset Voltage-Max:

    2100 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.4 V/us

  • Slew Rate-Nom:

    0.92 V/us

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2400

  • Voltage Gain-Min:

    56234

  • Wideband:

    NO

  • Width:

    3 mm

TSB572IYQ2T Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in their application note AN5096, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
  • The TSB572IYQ2T has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To handle this, ensure your design includes a thermal monitoring mechanism, such as a temperature sensor, to detect and respond to thermal shutdown events.
  • Although the datasheet doesn't explicitly state the maximum allowed voltage on the EN pin, it's recommended to keep it within the VCC supply voltage range (1.65V to 5.5V) to ensure proper operation and prevent damage to the device.
  • Yes, the TSB572IYQ2T is suitable for high-frequency switching applications up to 100 kHz. However, ensure that your design takes into account the device's switching characteristics, such as rise and fall times, and includes proper filtering and decoupling to minimize electromagnetic interference (EMI).
  • To calculate the power dissipation, use the formula: Pd = (VIN x IIN) + (VOUT x IOUT) + (VIN x Iq), where Pd is the total power dissipation, VIN is the input voltage, IIN is the input current, VOUT is the output voltage, IOUT is the output current, and Iq is the quiescent current. Consult the datasheet for the specific values of these parameters.
