TSC1214IST - STMicroelectronics

Description: Low-side digital power monitor, with I²C bus interface

Download TSC1214IST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

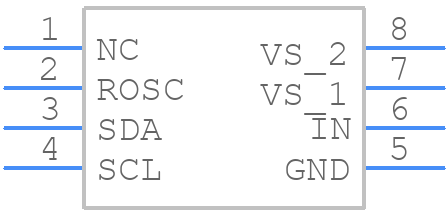

TSC1214IST - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSC1214IST - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - MiniSO8_2025
click to zoom
3D Models
TSC1214IST - STMicroelectronics - 3D model - Small Outline Packages - MiniSO8_2025
click to zoom

TSC1214IST Details

  • Manufacturer Part Number:

    TSC1214IST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    DIGITAL POWER CONTROLLER

TSC1214IST Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended layout and routing guide in their application note AN4172, which includes guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
  • The TSC1214IST has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the thermal pad with components or vias.
  • While the datasheet specifies an input voltage range of 2.7V to 5.5V, it's recommended to operate the device within a narrower range of 3.0V to 5.0V to ensure optimal performance and minimize power consumption.
  • The TSC1214IST has a shutdown pin (SHDN) that can be used to put the device into low-power mode. When SHDN is pulled low, the device enters a low-power state, reducing power consumption to less than 1µA. Additionally, the device can be configured for low-power mode by setting the appropriate bits in the control register.
  • The TSC1214IST can drive capacitive loads up to 100pF, but it's recommended to limit the load capacitance to 50pF or less to ensure stable operation and minimize ringing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC1214IST Overview

Use the download button to access the TSC1214IST schematic symbol, PCB footprint, and 3D model.
