TSC2000IPWR - Texas Instruments

Description: Touch Screen Controllers Prog 4Wire w/8-12Bit 125Khz ADC & SPI Ifc

Download TSC2000IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

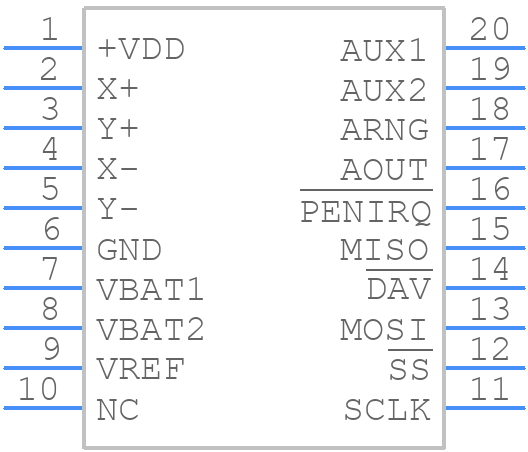

TSC2000IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2000IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
TSC2000IPWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

TSC2000IPWR Details

  • Manufacturer Part Number:

    TSC2000IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLERS

TSC2000IPWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TSC2000IPWR Evaluation Module User's Guide (SLAU575). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The TSC2000IPWR is a versatile touch screen controller that can be configured for various sensor types, including 4-wire, 5-wire, and mutual capacitance sensors. Refer to the TSC2000IPWR datasheet (SLAS964) and the Touch Screen Controller Configuration Guide (SLAU576) for configuration details.
  • The TSC2000IPWR can operate up to 200 kHz, but the maximum operating frequency depends on the specific application and sensor configuration. It's recommended to consult the datasheet and application notes for specific frequency limitations.
  • The TSC2000IPWR provides raw touch data, and gesture recognition is typically implemented in the host processor using software libraries or algorithms. Texas Instruments offers the Touch Screen Gesture Recognition Library (TSLIB001) to help implement gesture recognition.
  • The power consumption of the TSC2000IPWR depends on the operating mode, frequency, and sensor configuration. According to the datasheet, the typical power consumption is around 10 mA in active mode and 1 μA in sleep mode. However, actual power consumption may vary depending on the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2000IPWR Overview

Use the download button to access the TSC2000IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
