TSC2004IRTJR - Texas Instruments

Description: Nano-Power Touch Screen Controller with I2C Serial Interface

Download TSC2004IRTJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

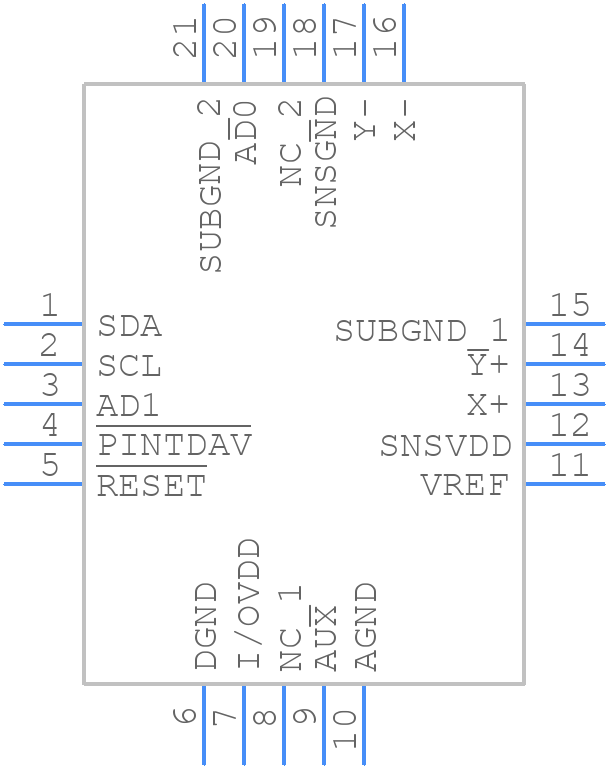

TSC2004IRTJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2004IRTJR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ0020D
click to zoom
3D Models
TSC2004IRTJR - Texas Instruments - 3D model - Quad Flat No-Lead - RTJ0020D
click to zoom

TSC2004IRTJR Details

  • Manufacturer Part Number:

    TSC2004IRTJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLERS

TSC2004IRTJR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TSC2004IRTJR is 1.65V to 3.6V.
  • To configure the TSC2004IRTJR for capacitive touch sensing, connect the sensor electrodes to the device's input pins, set the operating mode to capacitive sensing, and adjust the sensitivity and threshold settings according to the application requirements.
  • The TSC2004IRTJR can support up to 4 touch sensors or electrodes.
  • The TSC2004IRTJR has built-in noise filtering and shielding to minimize the effects of electromagnetic interference (EMI) and radio-frequency interference (RFI) on capacitive touch sensing performance.
  • Yes, the TSC2004IRTJR can be used for resistive touch sensing applications, but it is primarily designed for capacitive touch sensing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2004IRTJR Overview

Use the download button to access the TSC2004IRTJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
