A good PCB layout for the TSC2004IRTJT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the touch sensor electrodes. Additionally, it's recommended to use a shielded cable for the touch sensor connections and to keep the cable length as short as possible.
Calibration involves adjusting the sensitivity and threshold settings to optimize the touch sensing performance. This can be done by using the device's built-in calibration mode, which involves applying a touch stimulus to the sensor and adjusting the settings until the desired response is achieved.
The recommended power-up sequence for the TSC2004IRTJT is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
Troubleshooting issues with the TSC2004IRTJT involves checking the PCB layout, ensuring proper power supply and clock signal integrity, and verifying that the device is properly configured and calibrated. Additionally, using a logic analyzer or oscilloscope to monitor the device's signals can help identify the root cause of the issue.
Yes, the TSC2004IRTJT can be used in noisy environments, but it's essential to take measures to mitigate the effects of noise. This can be done by using shielding, filtering, and grounding techniques, as well as implementing noise-reducing design practices such as using a solid ground plane and minimizing signal trace lengths.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2004IRTJT Overview

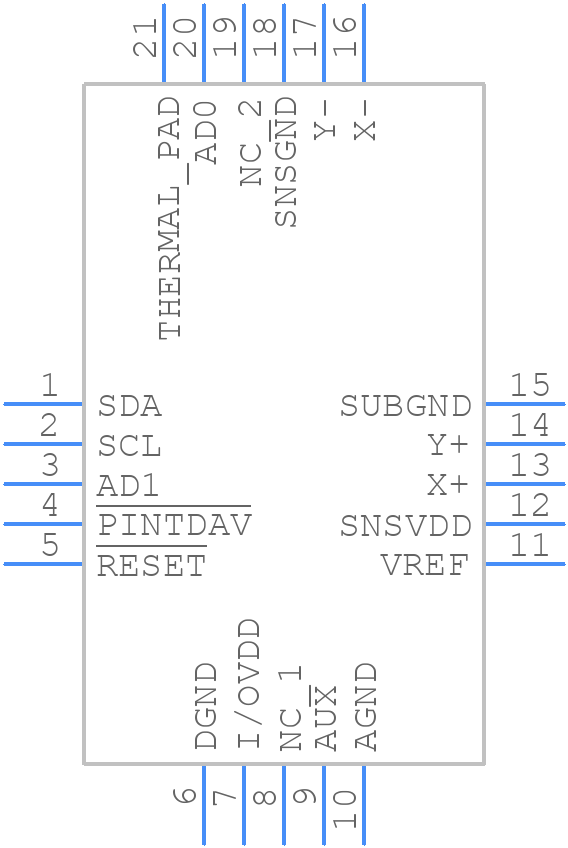

Use the download button to access the TSC2004IRTJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
