Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short traces, and avoid crossing digital signals over analog signals. Refer to the TI application note 'PCB Layout Guidelines for Touch Screen Controllers' for more details.
Calibration involves adjusting the sensitivity and threshold settings. TI provides a calibration tool, the 'Touch Screen Controller Calibration Tool', which can be used to generate the optimal settings for a specific touch screen design. The tool is available on the TI website.
The maximum operating frequency of the TSC2004IYZKR is 10 MHz. Operating at higher frequencies can increase power consumption. To minimize power consumption, operate the device at the lowest frequency required for the application, and use the built-in power-saving features, such as the 'Low Power Mode' and 'Sleep Mode'.
The TSC2004IYZKR has built-in noise filtering and interference rejection capabilities. However, to further minimize the effects of noise and interference, use proper shielding, grounding, and decoupling techniques in the system design. Additionally, consider using a noise filter or a shielded cable for the touch screen interface.
TI provides a gesture recognition library, the 'Touch Screen Gesture Recognition Library', which can be used to implement gesture recognition. The library provides a set of pre-defined gestures and allows for custom gesture creation. The library is available on the TI website.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2004IYZKR Overview

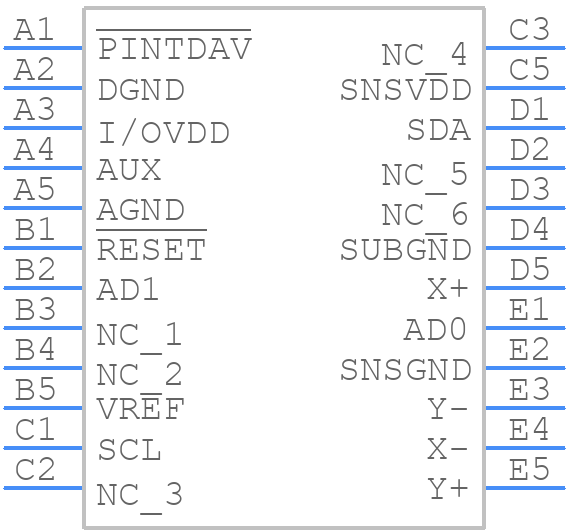

Use the download button to access the TSC2004IYZKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
