TSC2006IRTJT - Texas Instruments

Description: Nano-Power Touch Screen Controller with SPI Serial Interface

Download TSC2006IRTJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

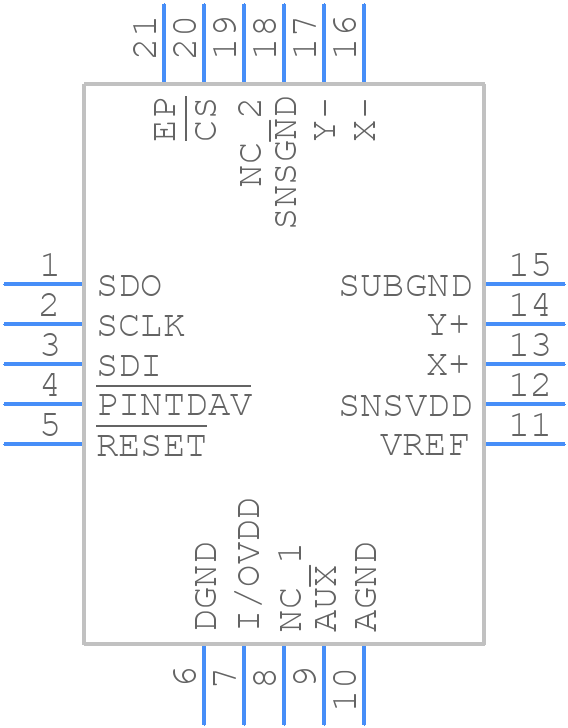

Symbol
TSC2006IRTJT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2006IRTJT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ(S-PWQFN-N20)-14
click to zoom
3D Models
TSC2006IRTJT - Texas Instruments - 3D model - Quad Flat No-Lead - RTJ(S-PWQFN-N20)-14
click to zoom

TSC2006IRTJT Details

  • Manufacturer Part Number:

    TSC2006IRTJT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLERS

TSC2006IRTJT Frequently Asked Questions (FAQs)

  • It's recommended to follow the layout guidelines provided in the datasheet, keeping the device close to the touch sensor, and using a solid ground plane to minimize noise and EMI.
  • Adjust the sensitivity by tweaking the gain settings, and ensure proper shielding and grounding to minimize noise. Also, consider using a capacitive touch sensor library or firmware to optimize performance.
  • The device is rated for operation from -40°C to 85°C, but it's recommended to operate within a narrower range (e.g., 0°C to 70°C) for optimal performance and reliability.
  • While possible, it's recommended to use a standard touch sensor design to ensure optimal performance and compatibility. If a custom design is required, consult with Texas Instruments or a qualified engineer for guidance.
  • Check the touch sensor design, layout, and grounding. Verify the device is properly configured and calibrated. Use a logic analyzer or oscilloscope to debug the signal. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2006IRTJT Overview

Use the download button to access the TSC2006IRTJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
