Texas Instruments provides a recommended layout and routing guide in the TSC2007IPWG4 datasheet, but it's also recommended to follow the general guidelines for capacitive touch controllers. Keep the sensor lines short, use a solid ground plane, and avoid routing sensitive signals near the sensor lines.
Calibration involves adjusting the sensitivity and threshold settings to optimize the touch performance. TI provides a calibration guide in the datasheet, which involves measuring the sensor capacitance and adjusting the settings accordingly. You can also use TI's TouchPro GUI tool to simplify the calibration process.
The TSC2007IPWG4 supports up to 7 touch points, including gestures such as zoom, pinch, and swipe. However, the actual number of touch points that can be detected simultaneously depends on the sensor design, layout, and firmware implementation.
The TSC2007IPWG4 has built-in noise filtering and interference rejection mechanisms, including a noise canceller and a spread spectrum clock. Additionally, TI recommends using proper shielding, grounding, and layout techniques to minimize noise and interference.
The power consumption of the TSC2007IPWG4 depends on the operating mode and frequency. In active mode, the typical power consumption is around 10mA, while in sleep mode, it's around 10uA. TI provides a detailed power consumption breakdown in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2007IPWG4 Overview

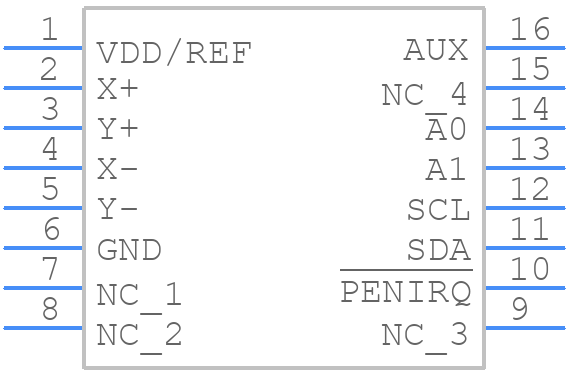

Use the download button to access the TSC2007IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
