Texas Instruments provides a recommended PCB layout in the TSC2007IPWRG4 datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
To ensure accurate touch detection in noisy environments, it's recommended to use a shielded cable for the touch sensor, add noise filtering capacitors to the touch sensor lines, and implement noise reduction algorithms in the firmware, such as averaging or median filtering.
The TSC2007IPWRG4 has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
While the TSC2007IPWRG4 is designed for touch screens up to 10 inches, it can be used with larger screens with some limitations. However, the device's performance may degrade with larger screens, and additional noise filtering or signal amplification may be required.
Calibration involves adjusting the touch sensor's sensitivity and threshold settings to optimize performance. This can be done using the device's built-in calibration routine or by using external calibration tools and software.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2007IPWRG4 Overview

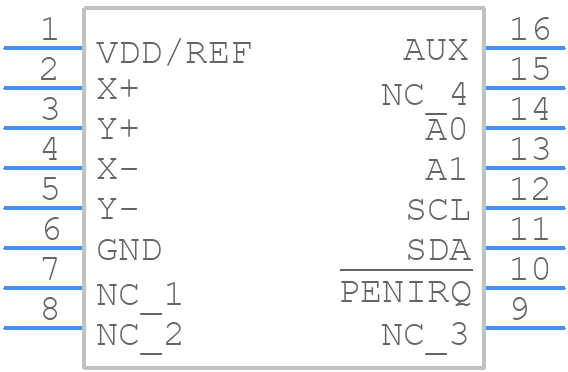

Use the download button to access the TSC2007IPWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
