A good PCB layout for the TSC2007IPWRQ1 involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the touch sensor electrodes. Additionally, it's recommended to use a shielded cable for the touch sensor connections and to minimize the length of the cables.
Calibration of the TSC2007IPWRQ1 involves adjusting the sensitivity and threshold settings to optimize touch sensing performance. This can be done by using the device's built-in calibration mode, which involves applying a known capacitance to the sensor electrodes and adjusting the settings until the desired sensitivity is achieved.
The maximum operating frequency of the TSC2007IPWRQ1 is 200 kHz. Operating the device at higher frequencies can improve touch sensing performance by reducing noise and increasing sensitivity, but it also increases power consumption. The optimal operating frequency depends on the specific application and touch sensor design.
The TSC2007IPWRQ1 has built-in noise filtering and interference rejection capabilities, including a noise canceller and a spread spectrum clock. Additionally, the device's differential sensing architecture helps to reject common-mode noise. However, it's still important to follow proper PCB layout and design practices to minimize noise and interference.
The power consumption of the TSC2007IPWRQ1 depends on the operating frequency and mode. In low-power mode, the device consumes around 1.5 mA, while in high-performance mode, it consumes around 10 mA. Power consumption can be minimized by using the device's low-power mode, reducing the operating frequency, and optimizing the touch sensor design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2007IPWRQ1 Overview

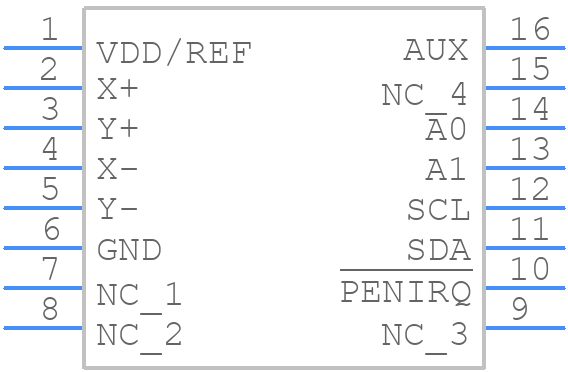

Use the download button to access the TSC2007IPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
