TSC200IDT - STMicroelectronics

Description: High voltage, current sense amplifier with open drain comparator and ref

Download TSC200IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

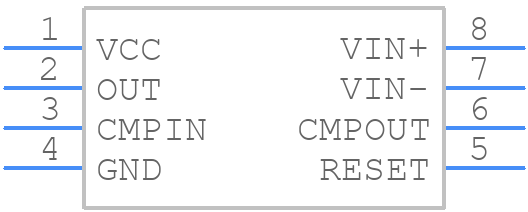

Symbol
TSC200IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSC200IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 package mechanical data--1
click to zoom
3D Models
TSC200IDT - STMicroelectronics - 3D model - Small Outline Packages - SO8 package mechanical data--1
click to zoom

TSC200IDT Details

  • Manufacturer Part Number:

    TSC200IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    16 µA

  • Common-mode Reject Ratio-Min:

    100 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Number of Functions:

    8

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    7 V/us

  • Supply Current-Max:

    1.85 mA

  • Supply Voltage Limit-Max:

    18.3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1000

  • Wideband:

    NO

  • Width:

    3.9 mm

TSC200IDT Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the TSC200IDT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the touch sensor. It's also important to avoid routing digital signals near the analog signals to prevent noise coupling.
  • Calibration of the TSC200IDT involves adjusting the sensitivity and threshold settings to optimize performance for the specific touch sensor and application. This can be done through the IC's registers or using STMicroelectronics' provided calibration software. It's also important to ensure that the touch sensor is properly connected and configured.
  • The maximum operating frequency of the TSC200IDT is 400 kHz, but it can be adjusted to lower frequencies depending on the application requirements. It's important to note that the operating frequency affects the IC's power consumption and noise sensitivity.
  • The TSC200IDT has built-in noise filtering and suppression capabilities, including a noise canceller and a shield driver. Additionally, the IC's differential architecture helps to reject common-mode noise. However, it's still important to follow proper layout and routing practices to minimize noise coupling and ensure reliable operation.
  • Yes, the TSC200IDT can be used with capacitive touch sensors from other manufacturers, as long as they meet the IC's electrical and mechanical requirements. However, STMicroelectronics provides optimized touch sensors that are specifically designed to work with the TSC200IDT, and using these sensors may provide better performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC200IDT Overview

Use the download button to access the TSC200IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Operational Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
