TSC2012IDT - STMicroelectronics

Description: High voltage, precision, bidirectional current sense amplifiers

Download TSC2012IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

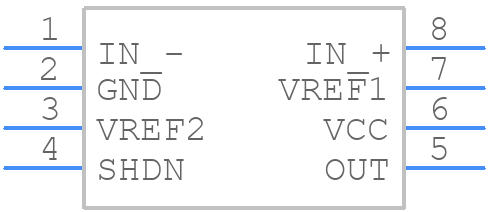

TSC2012IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSC2012IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - A6387DTR
click to zoom
3D Models
TSC2012IDT - STMicroelectronics - 3D model - Small Outline Packages - A6387DTR
click to zoom

TSC2012IDT Details

  • Manufacturer Part Number:

    TSC2012IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2020-02-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.6 µA

  • Bias Current-Max (IIB) @25C:

    0.6 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1100 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    3.2 V/us

  • Slew Rate-Nom:

    5.2 V/us

  • Supply Current-Max:

    2.4 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Wideband:

    NO

  • Width:

    3.9 mm

TSC2012IDT Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the TSC2012IDT can be found in the STMicroelectronics application note AN4071, which provides guidelines for PCB design and layout to ensure optimal performance and minimize noise.
  • The TSC2012IDT touch screen controller requires calibration to ensure accurate touch detection. The calibration process involves adjusting the sensitivity and threshold settings to match the specific touch screen panel being used. The calibration process is typically done through the I2C interface using a dedicated calibration tool or software provided by STMicroelectronics.
  • The maximum operating frequency of the TSC2012IDT is 10 MHz, which is the maximum clock frequency of the I2C interface. However, the actual operating frequency may be limited by the specific application and the touch screen panel being used.
  • Noise and interference can be handled in the TSC2012IDT touch screen system by using proper shielding, grounding, and filtering techniques. Additionally, the TSC2012IDT has built-in noise filtering and compensation mechanisms, such as the noise cancellation feature, which can be enabled through the I2C interface.
  • The power consumption of the TSC2012IDT depends on the specific operating mode and the touch screen panel being used. In typical operating conditions, the power consumption is around 10-20 mA, but it can be as low as 1-2 mA in low-power mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2012IDT Overview

Use the download button to access the TSC2012IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Operational Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
