TSH512CFT - STMicroelectronics

Description: Hi-fi stereo/mono infrared transmitter and stereo sub-carrier generator

Download TSH512CFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

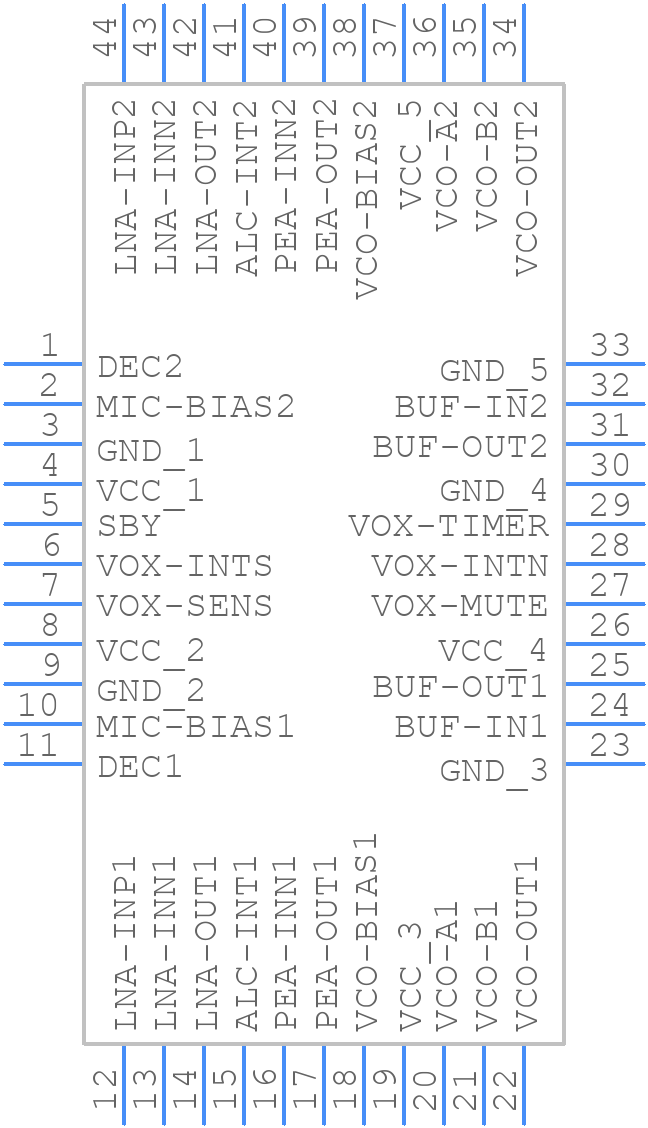

TSH512CFT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSH512CFT - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 44 10x10x1.4 mm
click to zoom
3D Models
TSH512CFT - STMicroelectronics - 3D model - Quad Flat Packages - LQFP 44 10x10x1.4 mm
click to zoom

TSH512CFT Details

  • Manufacturer Part Number:

    TSH512CFT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, TQFP-44

  • Pin Count:

    44

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    18.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

TSH512CFT Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V.
  • The TSH512CFT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap, mat, or workstation, and ensure that the device is handled in a static-safe environment.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) before applying any input signals. This ensures that the internal biasing and voltage regulators are properly initialized before the device starts operating.
