TDK provides a recommended PCB layout in their application notes, which includes guidelines for pad size, spacing, and thermal vias to ensure optimal thermal performance and minimize parasitic inductance.
The TSL0709RA-150K1R6-PF has a high current rating, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. Also, consider using thermal interface materials to improve heat transfer.
The self-resonant frequency (SRF) is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. For the TSL0709RA-150K1R6-PF, the SRF is approximately 150 MHz. However, it's recommended to consult with TDK's application engineers or perform your own measurements to determine the SRF for your specific application.
The TSL0709RA-150K1R6-PF has a rated operating temperature range of -40°C to +125°C. While it can operate in high-temperature environments, the inductor's performance and lifespan may be affected. Consult with TDK's application engineers to determine the inductor's suitability for your specific application and temperature range.
To select the correct inductor, consider factors such as the operating frequency, current rating, inductance value, and physical size. Consult TDK's selection guides and application notes, and consider consulting with their application engineers to ensure the inductor meets your specific requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSL0709RA-150K1R6-PF Overview

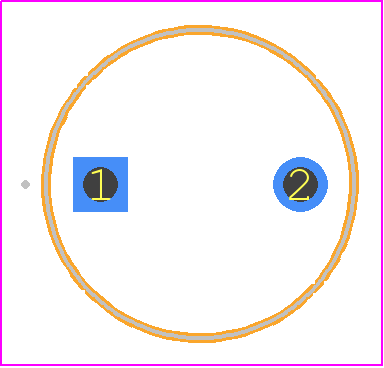

Use the download button to access the TSL0709RA-150K1R6-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL07,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
