TSL0709RA-151KR52-PF - TDK

Description: TDK 150 µH ±10% Leaded Inductor, Max SRF:4MHz, Q:20, 530mA Idc, 560mΩ Rdc

Download TSL0709RA-151KR52-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL0709RA-151KR52-PF - TDK - PCB symbol
click to zoom
PCB Footprints

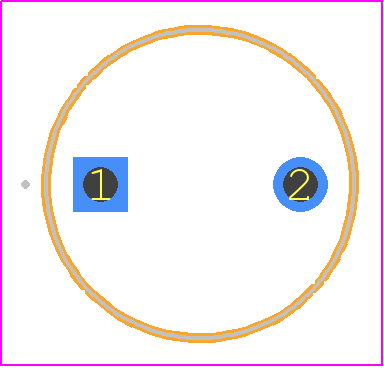

TSL0709RA-151KR52-PF - TDK PCB footprint - Other - Other - TSL0709
click to zoom
3D Models
TSL0709RA-151KR52-PF - TDK - 3D model - Other - TSL0709
click to zoom

TSL0709RA-151KR52-PF Details

  • Manufacturer Part Number:

    TSL0709RA-151KR52-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED , ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Non-Flammable

  • DC Resistance:

    0.56 Ω

  • Inductance-Nom (L):

    150 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.65 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Length:

    9.5 mm

  • Package Style:

    Radial

  • Packing Method:

    Ammo Pack

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    0.52 A

  • Self Resonance Frequency:

    4 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 0.796 MHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

TSL0709RA-151KR52-PF Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2-layer PCB is recommended, with the inductor on the top layer and the ground plane on the bottom layer.
  • The TSL0709RA-151KR52-PF has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal pad if the ambient temperature exceeds 85°C. Also, avoid overheating during soldering and rework.
  • TDK recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a ramp-up rate of 3°C/second. Avoid using excessive soldering temperature or time to prevent damage to the inductor.
  • The TSL0709RA-151KR52-PF is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, consider using a more robust inductor or adding additional mechanical support to prevent damage.
  • TDK recommends conformal coating or potting the inductor to protect it from moisture. Ensure the coating or potting material is compatible with the inductor's materials and follows the manufacturer's guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSL0709RA-151KR52-PF Overview

Use the download button to access the TSL0709RA-151KR52-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL07, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
