The recommended land pattern for the TSL0808RA-151KR67-PF can be found in the TDK Corporation's application note or on their website. It typically includes a recommended pad size, spacing, and layout to ensure proper soldering and thermal management.
Thermal derating is critical for inductors. The TSL0808RA-151KR67-PF has a temperature rating of -40°C to +125°C. To handle thermal derating, ensure proper airflow, use a heat sink if necessary, and follow the recommended PCB layout and thermal management guidelines.
The self-resonant frequency (SRF) of the TSL0808RA-151KR67-PF is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. Typically, the SRF is around 100-200 MHz for this type of inductor.
The TSL0808RA-151KR67-PF is designed for general-purpose use, but it may not be suitable for high-frequency applications (>100 MHz) due to its relatively high equivalent series resistance (ESR) and parasitic capacitance. For high-frequency applications, consider using a specialized high-frequency inductor with lower ESR and parasitic capacitance.
To ensure the reliability and lifespan of the TSL0808RA-151KR67-PF, follow proper storage and handling procedures, avoid excessive mechanical stress, and operate the inductor within its specified temperature and current ratings. Regularly inspect the inductor for signs of wear or damage, and replace it if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSL0808RA-151KR67-PF Overview

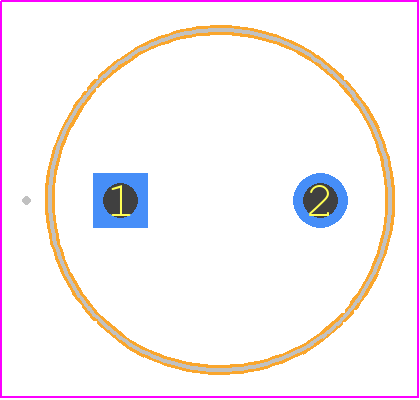

Use the download button to access the TSL0808RA-151KR67-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL08,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
