TSL1112RA-102JR50-PF - TDK

Description: TDK 1 mH ±5% Leaded Inductor, Max SRF:1.1MHz, Q:20, 500mA Idc, 1.4Ω Rdc

Download TSL1112RA-102JR50-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL1112RA-102JR50-PF - TDK - PCB symbol
click to zoom

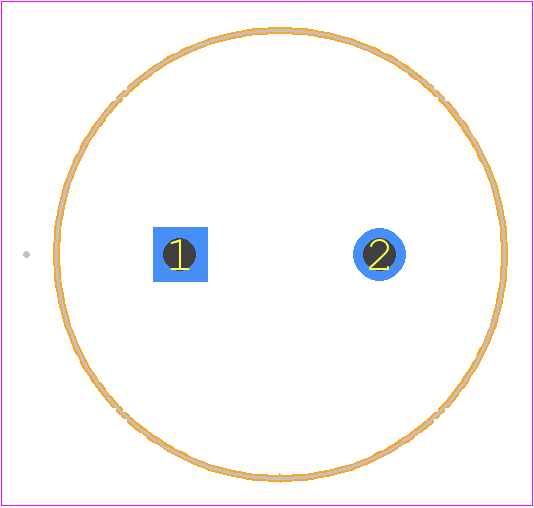

PCB Footprints
TSL1112RA-102JR50-PF - TDK PCB footprint - Other - Other - TSL1112
click to zoom
3D Models
TSL1112RA-102JR50-PF - TDK - 3D model - Other - TSL1112
click to zoom

TSL1112RA-102JR50-PF Details

  • Manufacturer Part Number:

    TSL1112RA-102JR50-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Non-Flammable

  • DC Resistance:

    1.4 Ω

  • Inductance-Nom (L):

    1000 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    0.65 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Length:

    12.2 mm

  • Package Style:

    Radial

  • Packing Method:

    Ammo Pack

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    0.5 A

  • Self Resonance Frequency:

    1.1 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 252 KHZ

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    5%

TSL1112RA-102JR50-PF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TSL1112RA-102JR50-PF can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
  • Proper thermal management is crucial for the TSL1112RA-102JR50-PF. Ensure good airflow around the component, and consider using a heat sink or thermal interface material if necessary. The thermal resistance of the component is specified in the datasheet, and it's essential to keep the operating temperature within the recommended range.
  • The recommended soldering profile for the TSL1112RA-102JR50-PF is a standard reflow profile with a peak temperature of 260°C (500°F) for a duration of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • The TSL1112RA-102JR50-PF is designed to withstand certain levels of vibration, but it's essential to evaluate the component's performance in your specific application. Consider the vibration frequency, amplitude, and duration, and consult with TDK Corporation's application engineers if necessary.
  • To ensure the reliability of the TSL1112RA-102JR50-PF in a humid environment, consider using a conformal coating or potting compound to protect the component from moisture. Additionally, ensure that the component is stored in a dry environment, and follow the recommended handling and storage procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSL1112RA-102JR50-PF Overview

Use the download button to access the TSL1112RA-102JR50-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL11, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
