TSL1112S-331KR82-PF - TDK

Description: Radial Lead Inductors For Power Line

Download TSL1112S-331KR82-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL1112S-331KR82-PF - TDK - PCB symbol
click to zoom
PCB Footprints

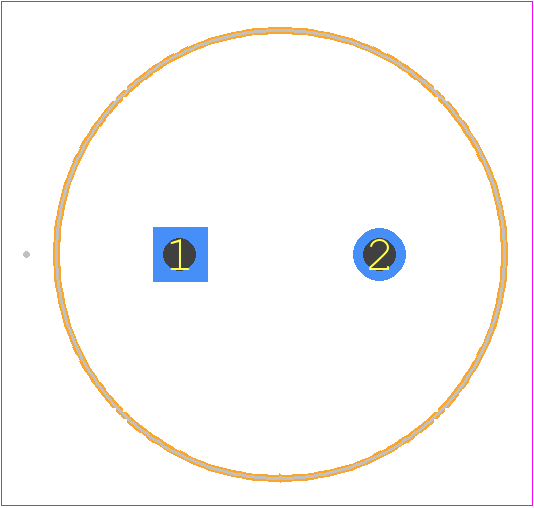

TSL1112S-331KR82-PF - TDK PCB footprint - Other - Other - TSL1112
click to zoom
3D Models
TSL1112S-331KR82-PF - TDK - 3D model - Other - TSL1112
click to zoom

TSL1112S-331KR82-PF Details

  • Manufacturer Part Number:

    TSL1112S-331KR82-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Non-Flammable

  • DC Resistance:

    0.52 Ω

  • Inductance-Nom (L):

    330 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.65 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Diameter:

    11.2 mm

  • Package Length:

    12.2 mm

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    0.82 A

  • Self Resonance Frequency:

    2 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 796 KHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

TSL1112S-331KR82-PF Frequently Asked Questions (FAQs)

  • TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The layout should also minimize the distance between the input and output pins to reduce parasitic inductance.
  • TDK recommends using a soldering iron with a temperature of 350°C to 370°C and a solder with a melting point of 217°C to 221°C. The inductor should be placed on the PCB with the terminals facing downwards and the solder should be applied in a smooth, continuous motion.
  • The TSL1112S-331KR82-PF has an operating temperature range of -40°C to +125°C, but derating is required above 80°C. Consult the datasheet for specific derating curves.
  • Yes, the TSL1112S-331KR82-PF is designed to withstand high vibrations and meets the IEC 60068-2-6 standard for vibration resistance. However, it's recommended to perform additional testing to ensure the inductor meets the specific requirements of your application.
  • The TSL1112S-331KR82-PF has a magnetic field that can affect nearby components. To minimize interference, keep the inductor at least 5 mm away from sensitive components and consider using shielding or a magnetic shield can to contain the field.
