TSL1315RA-330K3R7-PF - TDK

Description: TDK 33 µH ±10% Leaded Inductor, Max SRF:6.9MHz, Q:70, 6.8A Idc, 43mΩ Rdc

Download TSL1315RA-330K3R7-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL1315RA-330K3R7-PF - TDK - PCB symbol
click to zoom

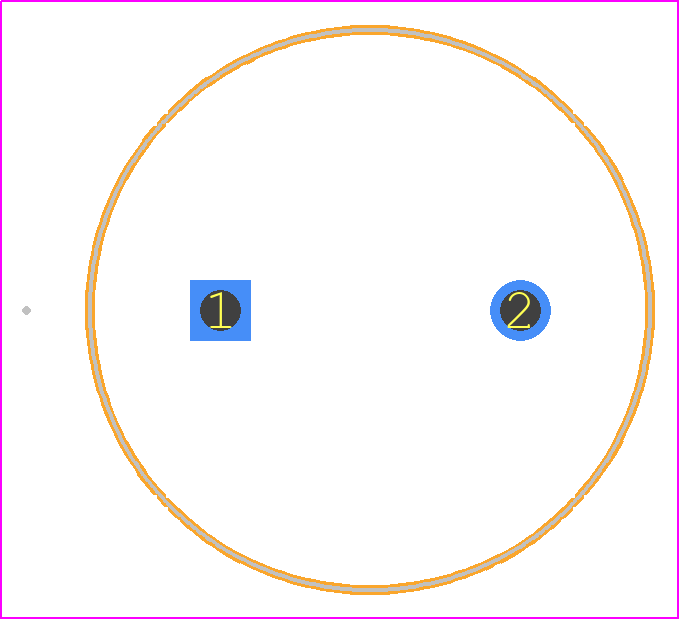

PCB Footprints
TSL1315RA-330K3R7-PF - TDK PCB footprint - Other - Other - TSL1315
click to zoom
3D Models
TSL1315RA-330K3R7-PF - TDK - 3D model - Other - TSL1315
click to zoom

TSL1315RA-330K3R7-PF Details

  • Manufacturer Part Number:

    TSL1315RA-330K3R7-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Coil

  • DC Resistance:

    0.043 Ω

  • Inductance-Nom (L):

    33 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    7.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Length:

    17 mm

  • Package Style:

    Radial

  • Packing Method:

    Ammo Pack

  • Quality Factor-Min (at L-nom):

    50

  • Rated Current-Max:

    3.7 A

  • Self Resonance Frequency:

    6.9 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 2.52 MHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

TSL1315RA-330K3R7-PF Frequently Asked Questions (FAQs)

  • TDK recommends a PCB layout with a solid ground plane, minimal signal trace length, and a decoupling capacitor (e.g., 100nF) between VCC and GND to reduce noise and ensure stable operation.
  • The output signal can be connected to an ADC (Analog-to-Digital Converter) or a comparator circuit to convert the analog signal to a digital signal. Additionally, a low-pass filter can be used to remove noise and improve signal quality.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 105°C with reduced accuracy and lifespan.
  • Calibration involves adjusting the gain and offset of the output signal to match the specific application requirements. This can be done using a lux meter as a reference and adjusting the gain and offset values accordingly.
  • Yes, the TSL1315RA-330K3R7-PF is sensitive to IR light, which can affect the accuracy of lux measurements. To minimize IR interference, use an IR filter or a lens with an IR-cut filter.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSL1315RA-330K3R7-PF Overview

Use the download button to access the TSL1315RA-330K3R7-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL13, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
