TSL1401CL - ams OSRAM

Description: Light To Frequency & Light To Voltage Linear Sensor Array 400dpi 128 pixel

Download TSL1401CL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

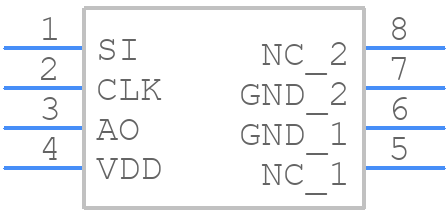

TSL1401CL - ams OSRAM - PCB symbol
click to zoom
PCB Footprints
TSL1401CL - ams OSRAM PCB footprint - Other - Other - TSL1401CL
click to zoom

TSL1401CL Details

  • Manufacturer Part Number:

    TSL1401CL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    0

  • Array Type:

    LINEAR

  • Body Breadth:

    3 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    9.4 mm

  • Dynamic Range:

    72 dB

  • Horizontal Pixel:

    128

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    4.5 mA

  • Operating Temperature-Max:

    70 °C

  • Output Range:

    1.60-2.40V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Pixel Size:

    55.5X63.5 µm

  • Sensors/Transducers Type:

    IMAGE SENSOR,CCD

  • Spectral Response (nm):

    300-1100

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    1

TSL1401CL Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TSL1401CL is -40°C to 85°C.
  • The TSL1401CL outputs 16-bit data, with the most significant bit (MSB) representing the highest intensity value. You can use a microcontroller or a dedicated IC to process the output data.
  • The TSL1401CL can handle illumination levels up to 100,000 lux, making it suitable for a wide range of applications, from low-light to bright-light conditions.
  • Calibration of the TSL1401CL involves adjusting the internal gain and offset settings to optimize its performance. You can use a calibration routine provided by the manufacturer or develop your own calibration procedure.
  • Yes, the TSL1401CL can operate with a supply voltage as low as 2.7V, making it compatible with 3.3V microcontrollers.
