TSM-102-01-F-SH-P-TR - SAMTEC

Description: 2 Position, Dual-Row, .100" Surface Mount Terminal Strip, Single-Row Vertical

Download TSM-102-01-F-SH-P-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSM-102-01-F-SH-P-TR - SAMTEC - PCB symbol
click to zoom
PCB Footprints

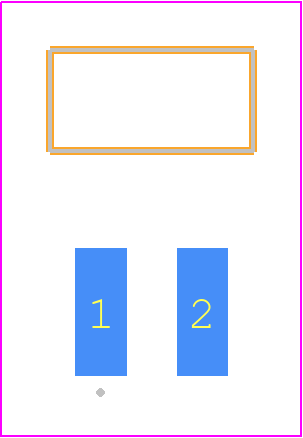

TSM-102-01-F-SH-P-TR - SAMTEC PCB footprint - Other - Other - TSM-102-YY-ZZZ-SH-P-TR
click to zoom
3D Models
TSM-102-01-F-SH-P-TR - SAMTEC - 3D model - Other - TSM-102-YY-ZZZ-SH-P-TR
click to zoom

TSM-102-01-F-SH-P-TR Details

  • Manufacturer Part Number:

    TSM-102-01-F-SH-P-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    13

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.12 inch

  • Body Depth:

    0.28 inch

  • Body Length:

    0.2 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    7 A

  • Reference Standard:

    CSA; UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    2

TSM-102-01-F-SH-P-TR Frequently Asked Questions (FAQs)

  • The recommended mating sequence for TSM-102-01-F-SH-P-TR is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the TSM-102-01-F-SH-P-TR is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
  • The TSM-102-01-F-SH-P-TR is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
  • The recommended torque for the screw-down mechanism of the TSM-102-01-F-SH-P-TR is 1.5-2.5 in-lbs (0.17-0.28 Nm). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
  • While the TSM-102-01-F-SH-P-TR is designed for use with 1.57 mm thick PCBs, Samtec offers variations of this connector that can accommodate different PCB thicknesses. Consult the Samtec website or contact their technical support for guidance on using this connector with non-standard PCB thicknesses.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM-102-01-F-SH-P-TR Overview

Use the download button to access the TSM-102-01-F-SH-P-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM-1, or try a keyword search, such as Headers and Edge Type Connectors
