TSM-105-03-SS-SH-P-TR footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

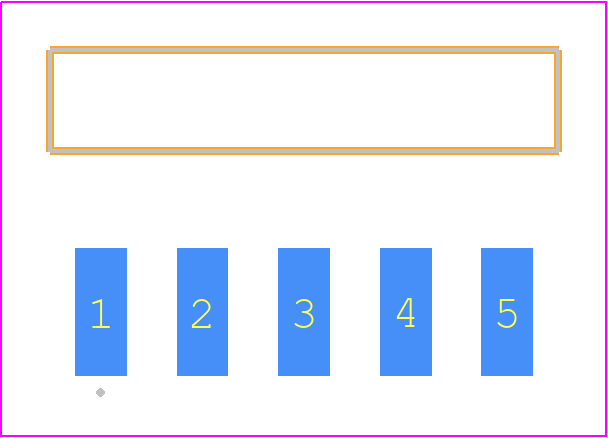

PCB Footprints

TSM-105-03-SS-SH-P-TR - SAMTEC PCB footprint - Other - Other - TSM-105-YY-ZZZ-SH-P-TR

click to zoom

3D Models

TSM-105-03-SS-SH-P-TR - SAMTEC - 3D model - Other - TSM-105-YY-ZZZ-SH-P-TR

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSM-105-03-SS-SH-P-TR
Part Number TSM-105-03-SS-SH-P-TR
Manufacturer SAMTEC
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - TSM-105-YY-ZZZ-SH-P-TR
Released Date Jun 24, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TSM-105-03-SS-SH-P-TR Details

Manufacturer Part Number:
TSM-105-03-SS-SH-P-TR
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TSM-105-03-SS-SH-P-TR Overview

Use the download button to access the TSM-105-03-SS-SH-P-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TSM-1, or try a keyword search, such as Headers and Edge Type Connectors
