TSM-110-01-G-DV - SAMTEC

Description: 20 Position, Dual-Row, .100" Surface Mount Terminal Strip

Download TSM-110-01-G-DV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSM-110-01-G-DV - SAMTEC - PCB symbol
click to zoom
PCB Footprints

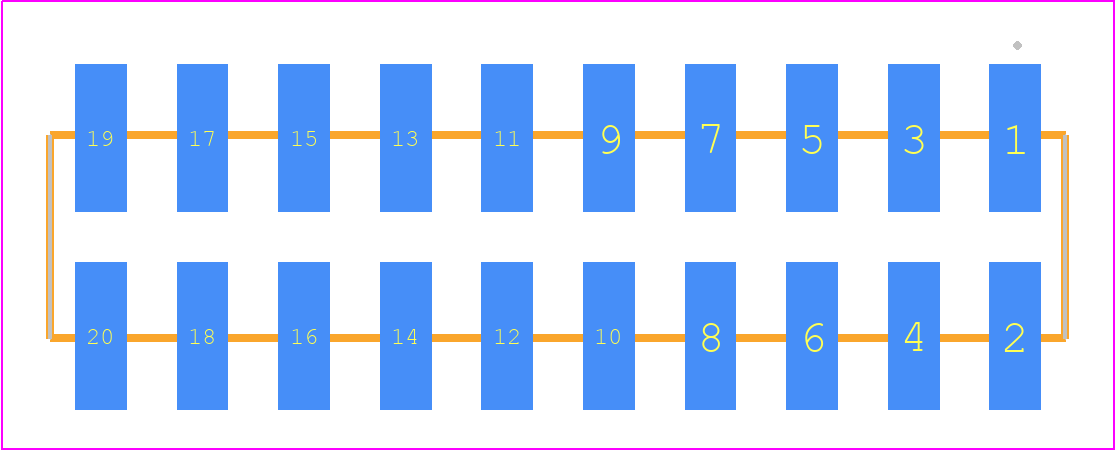

TSM-110-01-G-DV - SAMTEC PCB footprint - Other - Other - TSM-110-YY-ZZZ-DV
click to zoom
3D Models
TSM-110-01-G-DV - SAMTEC - 3D model - Other - TSM-110-YY-ZZZ-DV
click to zoom

TSM-110-01-G-DV Details

  • Manufacturer Part Number:

    TSM-110-01-G-DV

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.2 inch

  • Body Length:

    1 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

TSM-110-01-G-DV Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the TSM-110-01-G-DV connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the TSM-110-01-G-DV connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the TSM-110-01-G-DV connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • The TSM-110-01-G-DV connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends following their guidelines for environmental sealing and using additional protection measures if the connector will be exposed to harsh environmental conditions.
  • The recommended mating cycle for the TSM-110-01-G-DV connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM-110-01-G-DV Overview

Use the download button to access the TSM-110-01-G-DV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM-1, or try a keyword search, such as Headers and Edge Type Connectors
