The recommended mating sequence for TSM-112-01-L-DV-A is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the TSM-112-01-L-DV-A is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The TSM-112-01-L-DV-A has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the TSM-112-01-L-DV-A is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of lead-free soldering, ensuring reliable connections in modern manufacturing environments.
The typical current rating for the TSM-112-01-L-DV-A is 1.7A per contact. However, it's essential to consult the datasheet and Samtec's application notes for specific current rating information, as it may vary depending on the application and environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSM-112-01-L-DV-A Overview

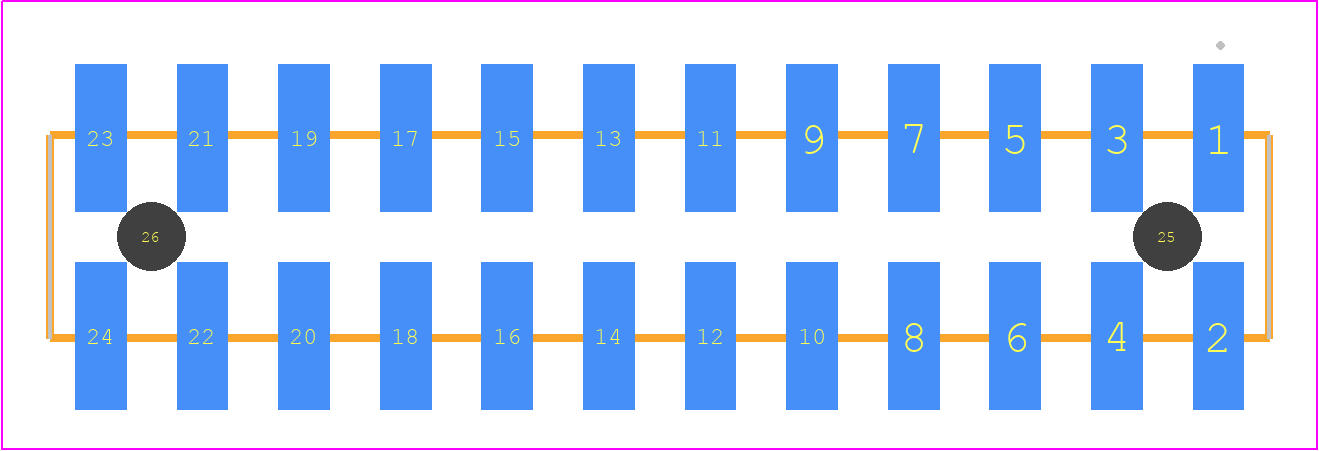

Use the download button to access the TSM-112-01-L-DV-A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM-1,
or try a keyword search, such as Headers and Edge Type Connectors
