TSM-123-01-F-DV-A footprint, schematic symbol and 3D model by SAMTEC

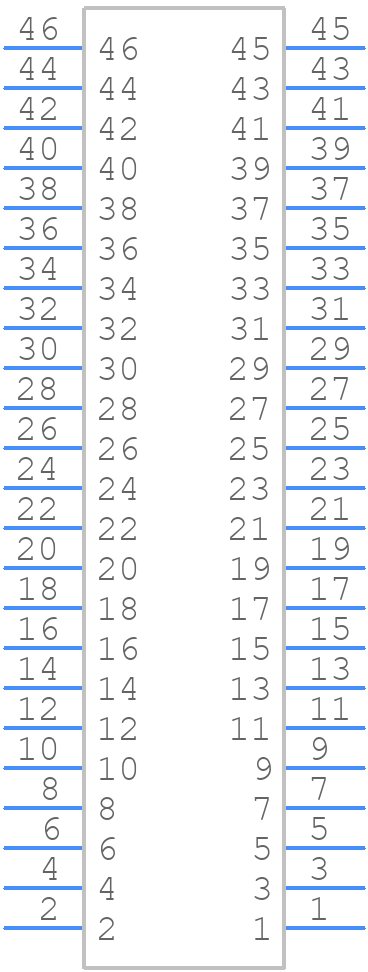

Symbol

click to zoom

PCB Footprints

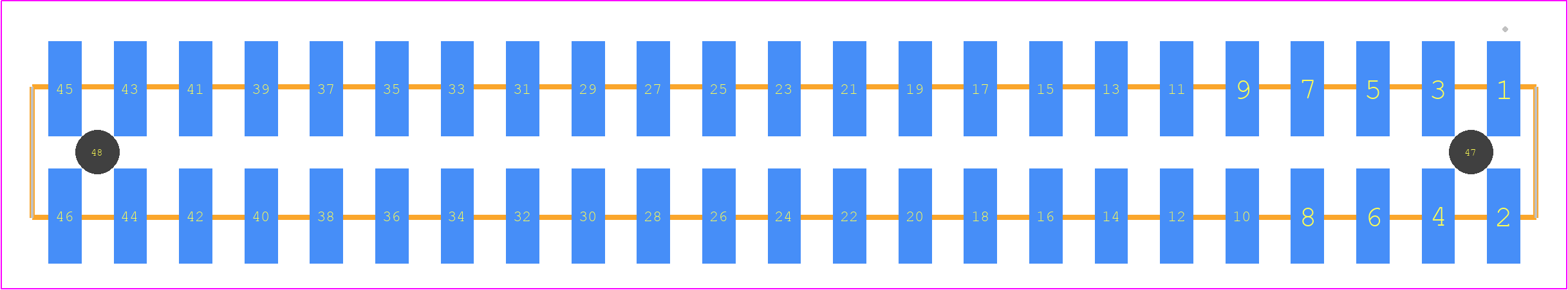

TSM-123-01-F-DV-A - SAMTEC PCB footprint - Other - Other - TSM-123-YY-ZZZ-DV-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSM-123-01-F-DV-A
Part Number TSM-123-01-F-DV-A
Manufacturer SAMTEC
Pin Count 46
Part Category Connector
Package Category Other
Footprint Name Other - TSM-123-YY-ZZZ-DV-A
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TSM-123-01-F-DV-A Details

Manufacturer Part Number:
TSM-123-01-F-DV-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.1
Board Mounting Option:
PEG
Body Breadth:
0.2 inch
Body Depth:
0.15 inch
Body Length:
2.3 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
4.953 mm
Rated Current (Signal):
7 A
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
46

TSM-123-01-F-DV-A Frequently Asked Questions (FAQs)

The recommended mating sequence for TSM-123-01-F-DV-A is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the TSM-123-01-F-DV-A is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection even in harsh conditions.
The maximum operating temperature for TSM-123-01-F-DV-A is 125°C (257°F). However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
Yes, the TSM-123-01-F-DV-A is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of RoHS and WEEE directives.
The typical contact resistance for TSM-123-01-F-DV-A is 10-20 milliohms. However, this value may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TSM-123-01-F-DV-A Overview

Use the download button to access the TSM-123-01-F-DV-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TSM-1, or try a keyword search, such as Headers and Edge Type Connectors
