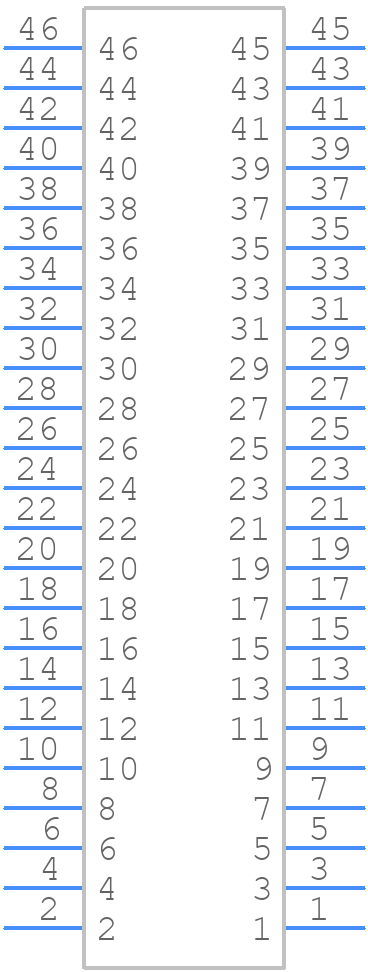

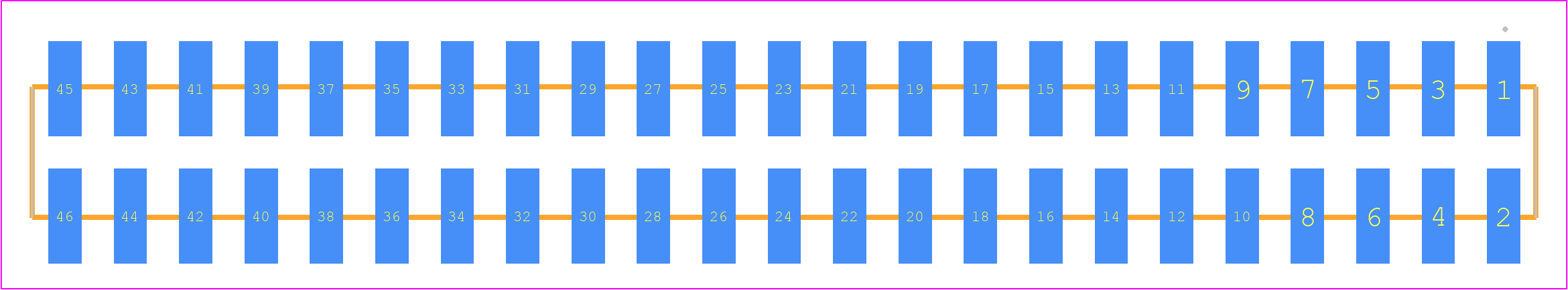

TSM-123-01-STL-DV - SAMTEC

TSM-123-01-STL-DV Details

• Manufacturer Part Number:

  TSM-123-01-STL-DV

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  9.1

• Body Breadth:

  0.2 inch

• Body Depth:

  0.15 inch

• Body Length:

  2.3 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (30)

• Contact Finish Termination:

  Tin/Lead (Sn/Pb)

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• JESD-609 Code:

  e0

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  4.953 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  7 A

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  46

• UL Flammability Code:

  94V-0
