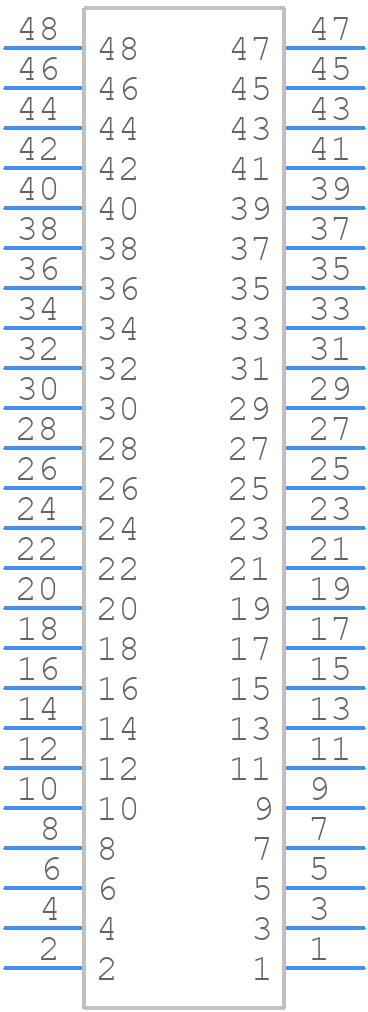

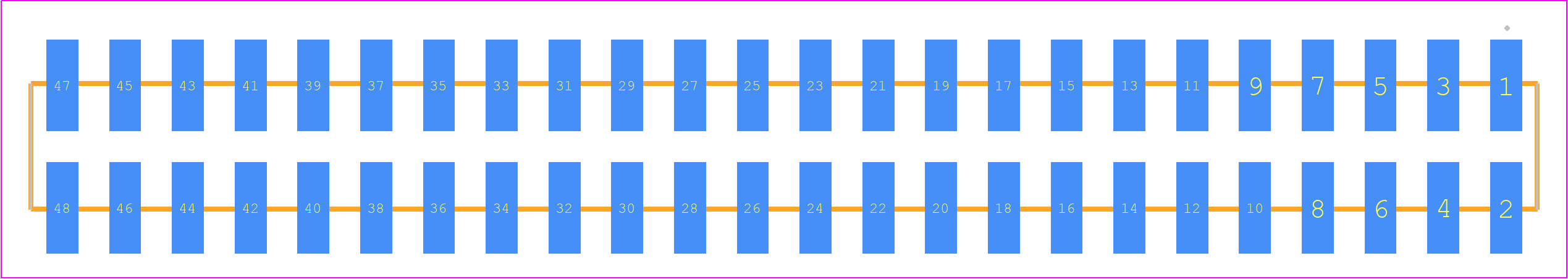

TSM-124-01-L-DV-TR - SAMTEC

TSM-124-01-L-DV-TR Details

• Manufacturer Part Number:

  TSM-124-01-L-DV-TR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  2 Weeks, 6 Days

• Manufacturer:

  Samtec Inc

• YTEOL:

  9.1

• Additional Feature:

  E.L.P.

• Body Breadth:

  0.2 inch

• Body Depth:

  0.1 inch

• Body Length:

  2.4 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (10) OVER NICKEL (50)

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.4864 mm

• Plating Thickness:

  10u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  48
