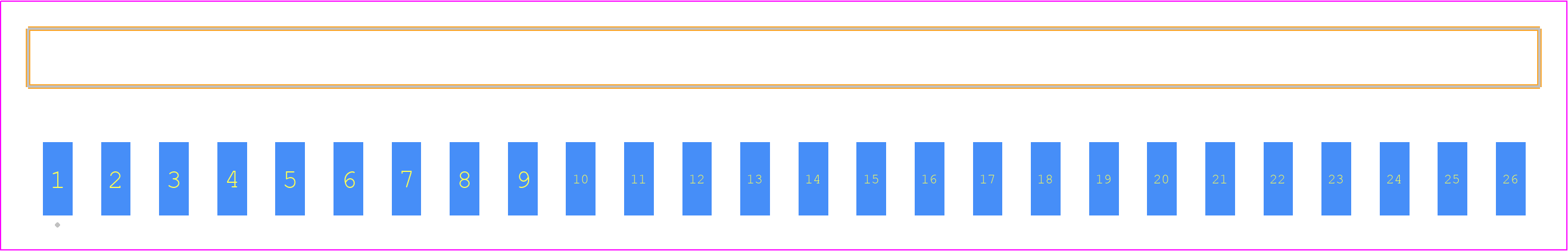

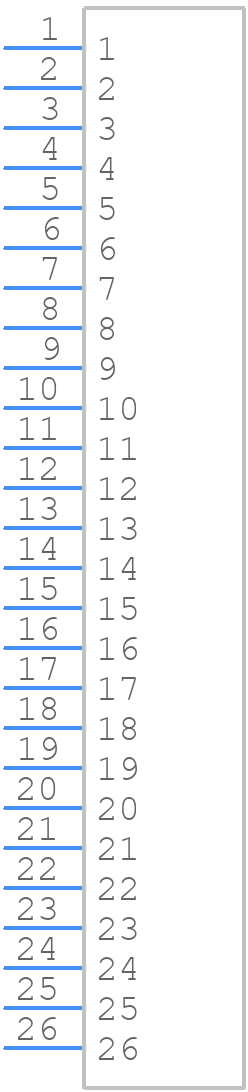

TSM-126-01-T-SH - SAMTEC

TSM-126-01-T-SH Details

• Manufacturer Part Number:

  TSM-126-01-T-SH

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Malaysia, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  9.1

• Board Mounting Option:

  PEG

• Body Breadth:

  0.12 inch

• Body Depth:

  0.28 inch

• Body Length:

  2.6 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Design:

  PREASSEM CONN

• Contact Finish Mating:

  MATTE TIN OVER NICKEL (50)

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Rated Current (Signal):

  7 A

• Reference Standard:

  CSA; UL

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  26
