TSM1014IDT - STMicroelectronics

Description: Low consumption voltage and current controller for battery chargers and adapters

Download TSM1014IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

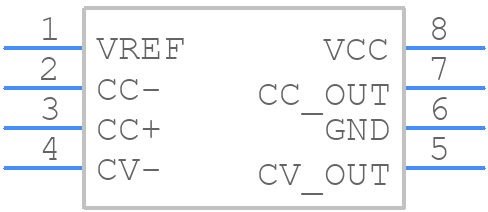

TSM1014IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM1014IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST SO-8_2
click to zoom
3D Models
TSM1014IDT - STMicroelectronics - 3D model - Small Outline Packages - ST SO-8_2
click to zoom

TSM1014IDT Details

  • Manufacturer Part Number:

    TSM1014IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.35

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.18 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TSM1014IDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSM1014IDT involves placing the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. The output capacitor should be placed as close as possible to the output pin of the device.
  • The TSM1014IDT can handle an input voltage up to 18V, but it's recommended to operate the device within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • To protect the TSM1014IDT from overcurrent and overheating, it's recommended to use an external current limiting resistor, a fuse, or a PTC (Positive Temperature Coefficient) thermistor. Additionally, ensure good airflow around the device and use a heat sink if necessary.
  • The TSM1014IDT is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. It's also essential to ensure good airflow and heat sinking to prevent overheating.
