TSM102AID - STMicroelectronics

Description: Dual Op-Amp + Dual Comparator + VRef (Bipolar), Adjustable

Download TSM102AID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

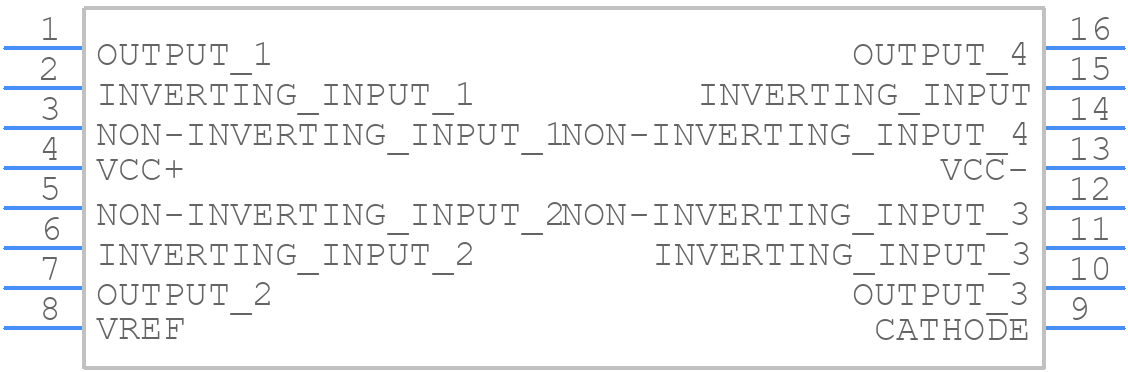

TSM102AID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM102AID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 MECHANICAL DATA-
click to zoom
3D Models
TSM102AID - STMicroelectronics - 3D model - Small Outline Packages - SO-16 MECHANICAL DATA-
click to zoom

TSM102AID Details

  • Manufacturer Part Number:

    TSM102AID

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2100

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

TSM102AID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5096, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
  • The maximum ambient temperature for the TSM102AID is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to consider the thermal management and heat dissipation in the system design to ensure the device operates within the recommended temperature range.
  • Yes, the TSM102AID is designed to withstand vibrations up to 10g peak acceleration, but it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5096, which covers common issues such as output voltage regulation, input voltage range, and thermal shutdown. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify and resolve issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM102AID Overview

Use the download button to access the TSM102AID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10, or try a keyword search, such as Operational Amplifiers
