TSM102IDT - STMicroelectronics

Description: VOLTAGE AND CURRENT CONTROLLER, 36V, -40 to +125 °C

Download TSM102IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

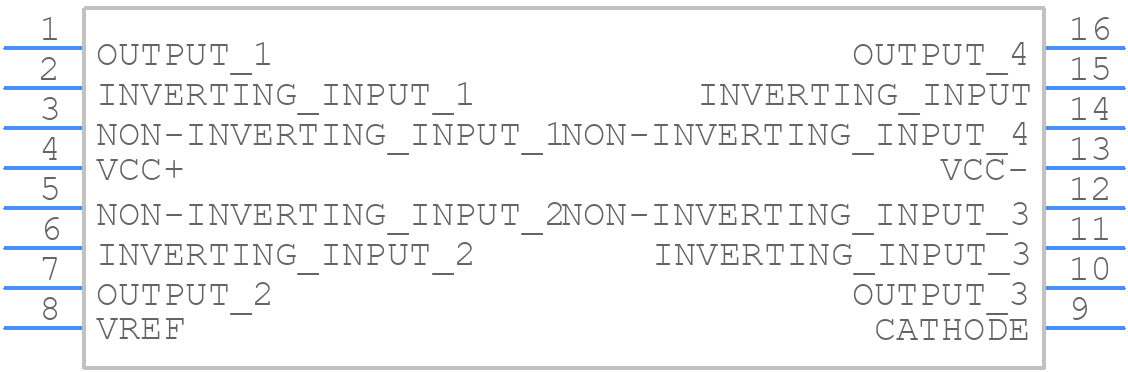

Symbol
TSM102IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM102IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16_2026-1
click to zoom
3D Models
TSM102IDT - STMicroelectronics - 3D model - Small Outline Packages - SO-16_2026-1
click to zoom

TSM102IDT Details

  • Manufacturer Part Number:

    TSM102IDT

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2100

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

TSM102IDT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The input capacitor selection depends on the input voltage, frequency, and ripple current. A general guideline is to choose a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating at least 1.5 times the maximum input voltage. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
  • The TSM102IDT is rated for operation up to 125°C ambient temperature, but the maximum junction temperature (TJ) is 150°C. Ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
  • Yes, the TSM102IDT is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended design and manufacturing guidelines, and perform thorough testing and validation to meet the specific requirements of your application.
  • Start by checking the input voltage, output load, and PCB layout for any issues. Verify that the input capacitor is properly selected and the output voltage is within the recommended range. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and contact STMicroelectronics support if needed.
