TSM109AID - STMicroelectronics

Description: TSM109AID, Dual Comparator 1.3µs 2-kanalers 3, 5, 9, 12, 15, 18, 24, 28V 8-Pin SO

Download TSM109AID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

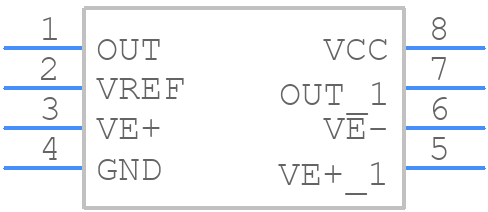

TSM109AID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM109AID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST SO-8_2
click to zoom
3D Models
TSM109AID - STMicroelectronics - 3D model - Small Outline Packages - ST SO-8_2
click to zoom

TSM109AID Details

  • Manufacturer Part Number:

    TSM109AID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TSM109AID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management.
  • To optimize thermal performance, ensure good thermal coupling between the device and the PCB, use a thermal pad or heat sink, and follow the recommended PCB layout guidelines. Additionally, reduce the thermal resistance by using thermal vias and thermal layers.
  • The maximum allowed voltage on the input pins is 6V, exceeding which may cause damage to the device. It's essential to ensure that the input voltage does not exceed the recommended maximum rating.
  • To ensure ESD protection, follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits in the design. Additionally, consider using ESD-protected devices or adding external ESD protection components.
  • The recommended operating frequency range for the TSM109AID is up to 100 kHz, although it can operate up to 200 kHz with reduced performance. Operating the device beyond the recommended frequency range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM109AID Overview

Use the download button to access the TSM109AID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10, or try a keyword search, such as Comparators
