TSR1 2433SM footprint, schematic symbol and 3D model by Traco Power

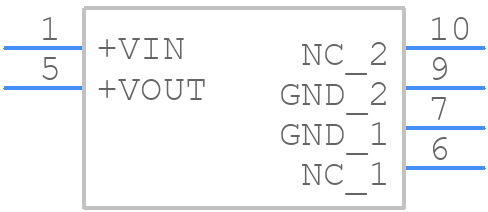

Symbol

click to zoom

PCB Footprints

TSR1 2433SM - Traco Power PCB footprint - Other - Other - TSR1 2433SM-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSR1 2433SM
Part Number TSR1 2433SM
Manufacturer Traco Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - TSR1 2433SM-1
Released Date Feb 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TSR1 2433SM Details

Manufacturer Part Number:
TSR1 2433SM
Manufacturer:
Traco Power

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TSR1 2433SM Overview

Use the download button to access the TSR1 2433SM schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TSR1 , or try a keyword search, such as Power Supply Modules
