TSS-13LN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 1 - 1000 MHz, 50

Download TSS-13LN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

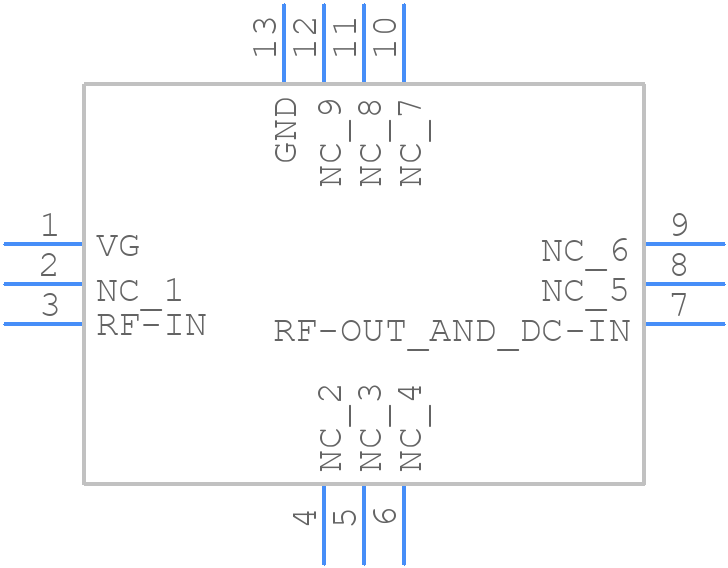

TSS-13LN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TSS-13LN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-13
click to zoom
3D Models
TSS-13LN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-13
click to zoom

TSS-13LN+ Details

  • Manufacturer Part Number:

    TSS-13LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-02-15

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.46

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18.2 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    151 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • Terminal Finish:

    Gold (Au)

  • VSWR-Max:

    1.12

TSS-13LN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • To achieve the specified return loss and insertion loss performance, ensure that the TSS-13LN+ is properly matched to the system impedance (typically 50 ohms), and that the PCB layout is well-designed with minimal parasitic inductance and capacitance. Additionally, use high-quality connectors and cables to minimize signal degradation.
  • The maximum power handling of the TSS-13LN+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power without degradation. However, it's recommended to derate the power handling based on the operating frequency and environmental conditions.
  • While the TSS-13LN+ is optimized for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, it's essential to re-optimize the PCB layout and matching networks to ensure optimal performance in the target impedance system.
  • The operating temperature range of the TSS-13LN+ is -40°C to +85°C, as stated in the datasheet. However, it's recommended to derate the performance and power handling at extreme temperatures to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSS-13LN+ Overview

Use the download button to access the TSS-13LN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSS-1, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
