TST-107-01-G-D-06 - SAMTEC

Description: Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Download TST-107-01-G-D-06 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TST-107-01-G-D-06 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

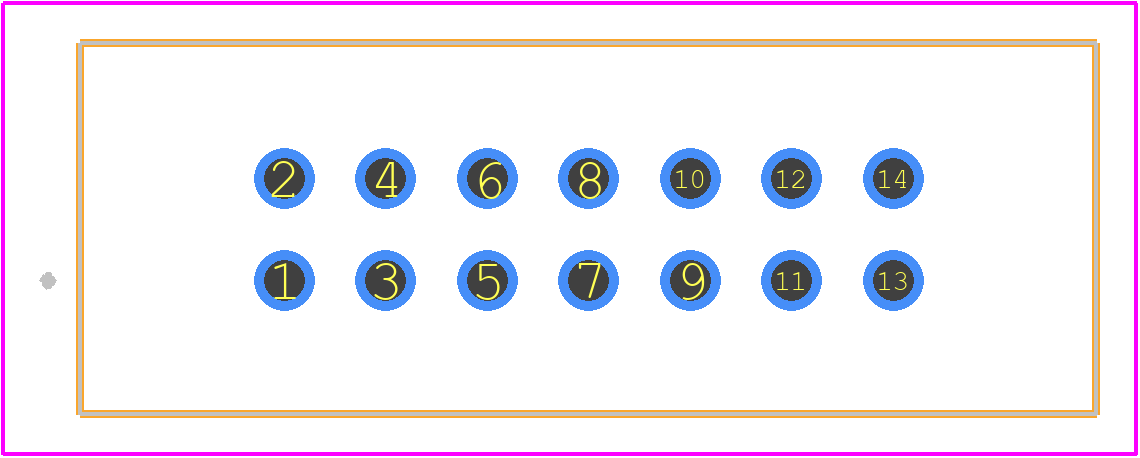

TST-107-01-G-D-06 - SAMTEC PCB footprint - Other - Other - TST-107-01-G-D-06-2
click to zoom
3D Models
TST-107-01-G-D-06 - SAMTEC - 3D model - Other - TST-107-01-G-D-06-2
click to zoom

TST-107-01-G-D-06 Details

  • Manufacturer Part Number:

    TST-107-01-G-D-06

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Additional Feature:

    SHROUDED, POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

TST-107-01-G-D-06 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the TST-107-01-G-D-06 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the TST-107-01-G-D-06 connector is designed to withstand vibration and shock according to IEC 61373 Cat 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • The maximum operating temperature for the TST-107-01-G-D-06 connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The TST-107-01-G-D-06 connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. Consult with Samtec's technical support for specific environmental requirements.
  • The recommended mating cycle for the TST-107-01-G-D-06 connector is 500 cycles minimum according to Samtec's application notes. However, the actual mating cycle may vary depending on the application and environmental conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TST-107-01-G-D-06 Overview

Use the download button to access the TST-107-01-G-D-06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TST-1, or try a keyword search, such as Headers and Edge Type Connectors
