The recommended PCB layout and spacing for optimal performance of the TST-9007 can be found in the application note provided by BETA Transformer Technology Corp. It is recommended to follow the guidelines for component placement, trace routing, and spacing to ensure minimal electromagnetic interference and optimal thermal performance.
The TST-9007 has built-in overvoltage and overcurrent protection features. It has a voltage clamp to prevent overvoltage damage and a current limit to prevent overcurrent damage. However, it is still recommended to add external protection circuits to ensure the transformer's reliability and longevity.
The operating temperature range of the TST-9007 is -40°C to 125°C. However, the transformer's performance and reliability may degrade if operated at extreme temperatures for an extended period. It is recommended to operate the transformer within the recommended temperature range for optimal performance and reliability.
Yes, the TST-9007 can be used in high-reliability applications such as aerospace or medical devices. However, it is recommended to consult with BETA Transformer Technology Corp's application engineers to ensure that the transformer meets the specific requirements of the application. Additional testing and certification may be required to meet the specific industry standards.
The TST-9007 is designed to meet the electromagnetic compatibility (EMC) regulations such as CISPR 22 and FCC Part 15. However, the final EMC compliance depends on the overall system design and layout. It is recommended to perform EMC testing on the final system to ensure compliance with the regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TST-9007 Overview

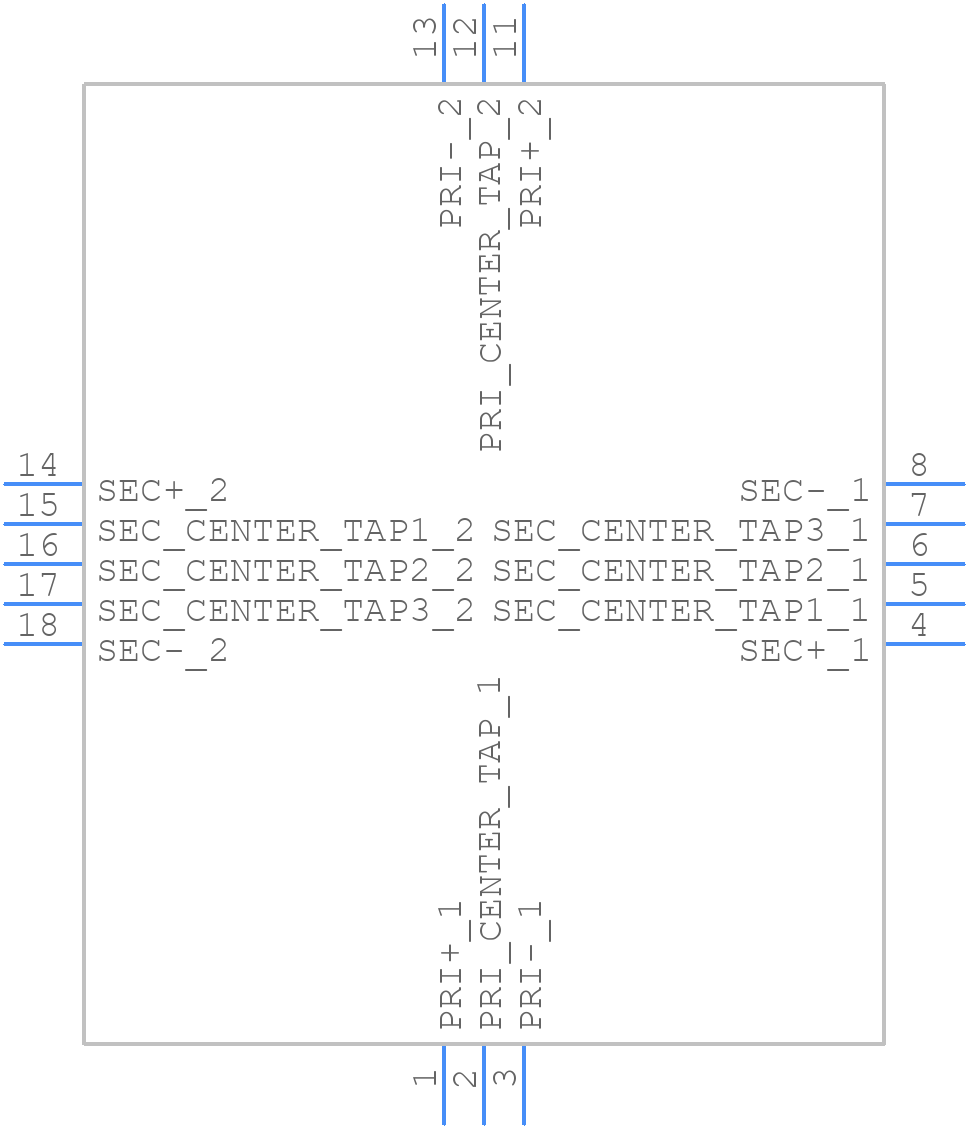

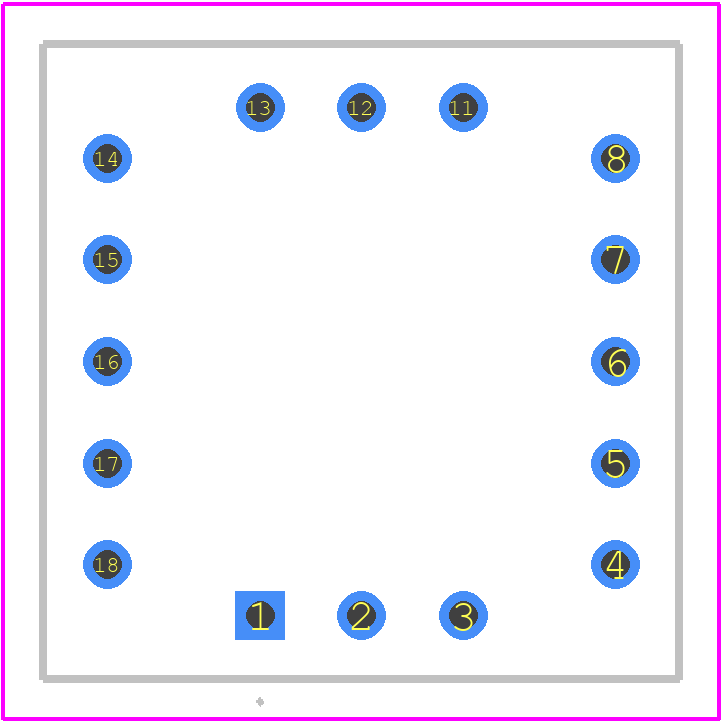

Use the download button to access the TST-9007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TST-9,
or try a keyword search, such as Pulse/Datacom Transformers
