TST2N-RA - KNITTER-SWITCH

TST2N-RA Details

• Manufacturer Part Number:

  TST2N-RA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  knitter-switch

• Actuator Finish:

  CHROME

• Actuator Length:

  0.24 inch

• Actuator Material:

  BRASS

• Actuator Type:

  TOGGLE

• Body Breadth:

  8.128 mm

• Body Height:

  11.7856 mm

• Body Length or Diameter:

  10.16 mm

• Bushing Length:

  0.162 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  COPPER

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Power Rating R Load:

  0.4VA@20VAC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.02 mΩ

• Contact Timing:

  MAKE-BEFORE-BREAK

• Dielectric Withstand Volts:

  1000VRMS V

• End Contact Material:

  COPPER

• End Contact Plating:

  GOLD OVER NICKEL

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED NYLON

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

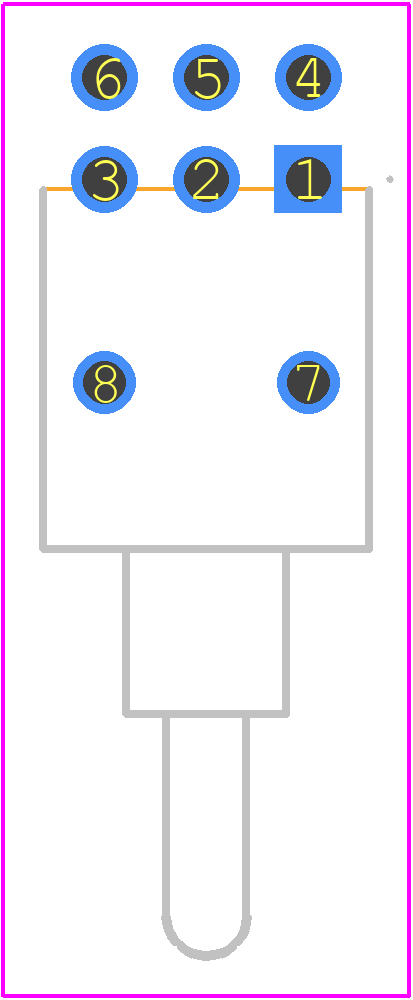

• PCB Hole Count:

  6

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.13 inch

• Terminal Material:

  COPPER

• Termination Type:

  SOLDER
