TST36RB06T footprint, schematic symbol and 3D model by ITT CANNON

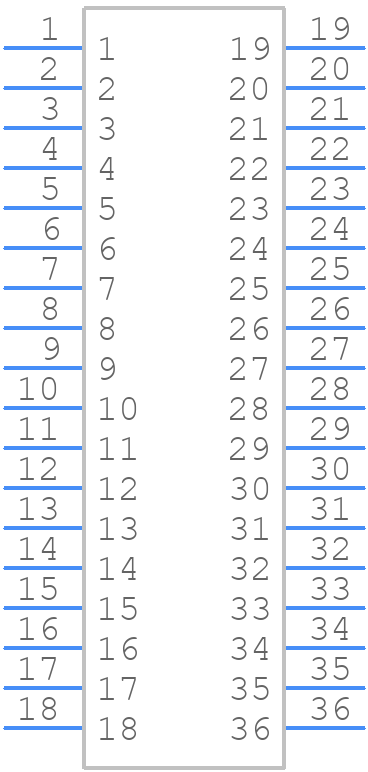

Symbol

click to zoom

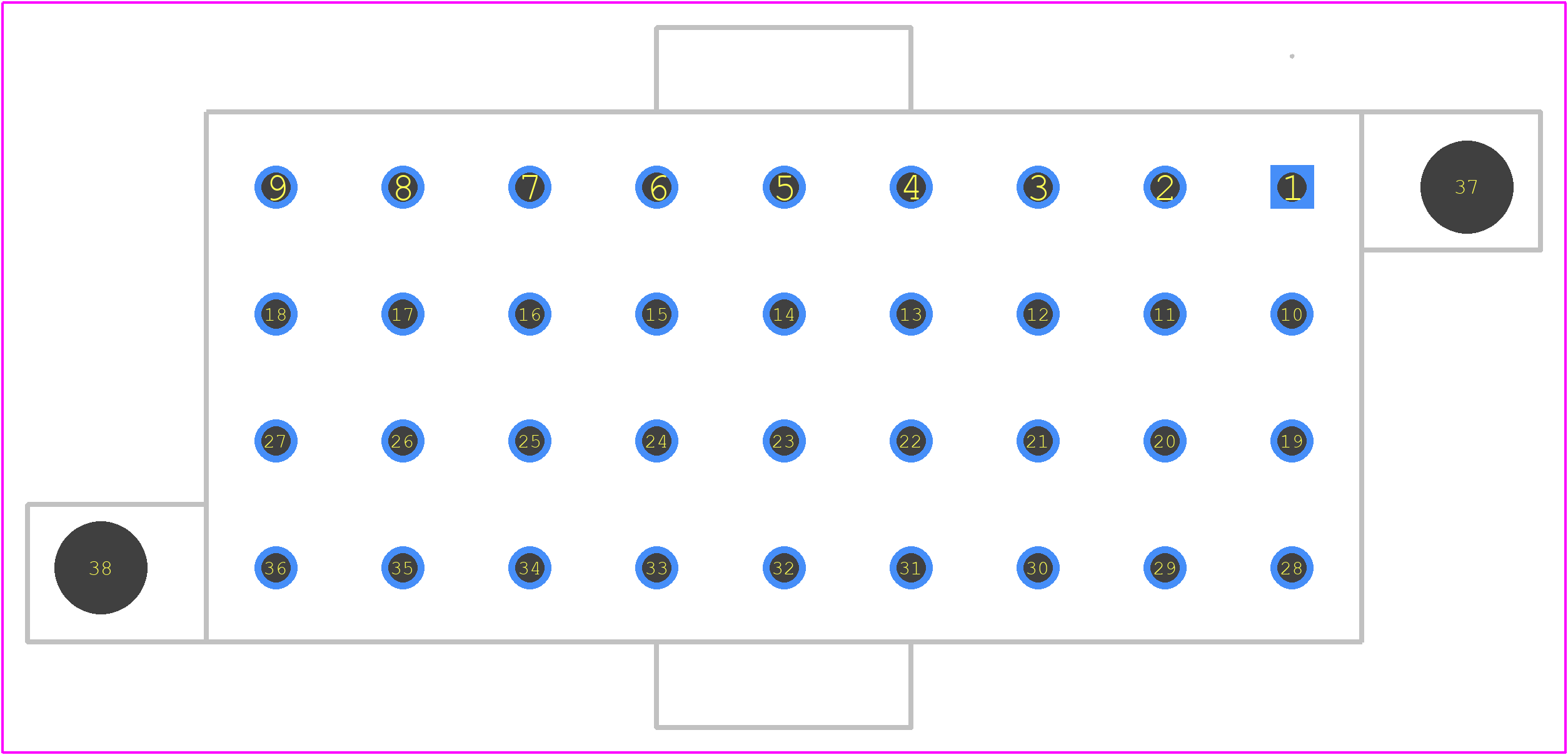

PCB Footprints

TST36RB06T - ITT CANNON PCB footprint - Other - Other - TST36RB06T-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TST36RB06T
Part Number TST36RB06T
Manufacturer ITT CANNON
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - TST36RB06T-3
Released Date Apr 22, 2026
Last Modified Date Apr 22, 2026 1:52 PM UTC
Pinout / Pin List Click Here (Member Only)

TST36RB06T Details

Manufacturer Part Number:
TST36RB06T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
10 Weeks
Manufacturer:
ITT Interconnect Solutions
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

TST36RB06T Frequently Asked Questions (FAQs)

The recommended torque value for the TST36RB06T connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 1.5-2.5 Nm (13.3-22.1 in-lbs) for the backshell.
Yes, the TST36RB06T connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration.
Yes, the TST36RB06T connector is designed to operate in harsh environments, with an operating temperature range of -55°C to 150°C and a humidity rating of 95% RH at 40°C.
The TST36RB06T connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
Yes, the TST36RB06T connector has a shielded design, which provides EMI shielding and helps to reduce electromagnetic interference.

Trust Checks

Community Provided

System Verified

Community Approved

TST36RB06T Overview

Use the download button to access the TST36RB06T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TST36, or try a keyword search, such as Power Connectors
